Question: 6 - 5 9 . Determine the force in each member of the space truss and state if the members are in tension or compression.

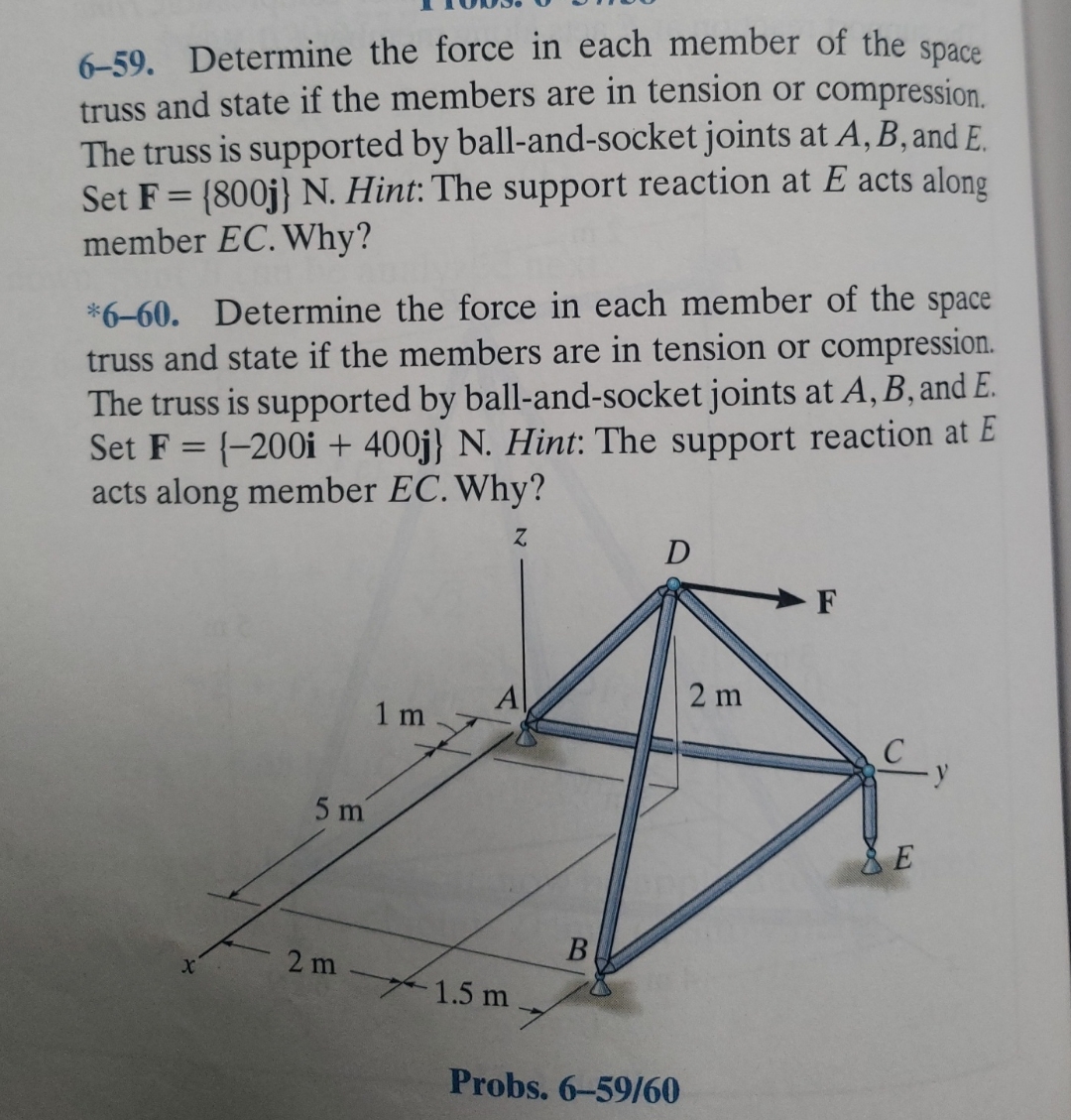

6-59. Determine the force in each member of the space truss and state if the members are in tension or compression. The truss is supported by ball-and-socket joints at A,B, and E. Set F={800j} N. Hint: The support reaction at E acts along member EC. Why?
*6-60. Determine the force in each member of the space truss and state if the members are in tension or compression. The truss is supported by ball-and-socket joints at A,B, and E. Set F={-200i+400j} N. Hint: The support reaction at E acts along member EC. Why?
Probs. 6-59/60
6 - 5 9 . Determine the force in each member of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
