Question: * 6 - 6 0 . Determine the maximum moment in the suspended rail at point B if the rail supports the load of 2

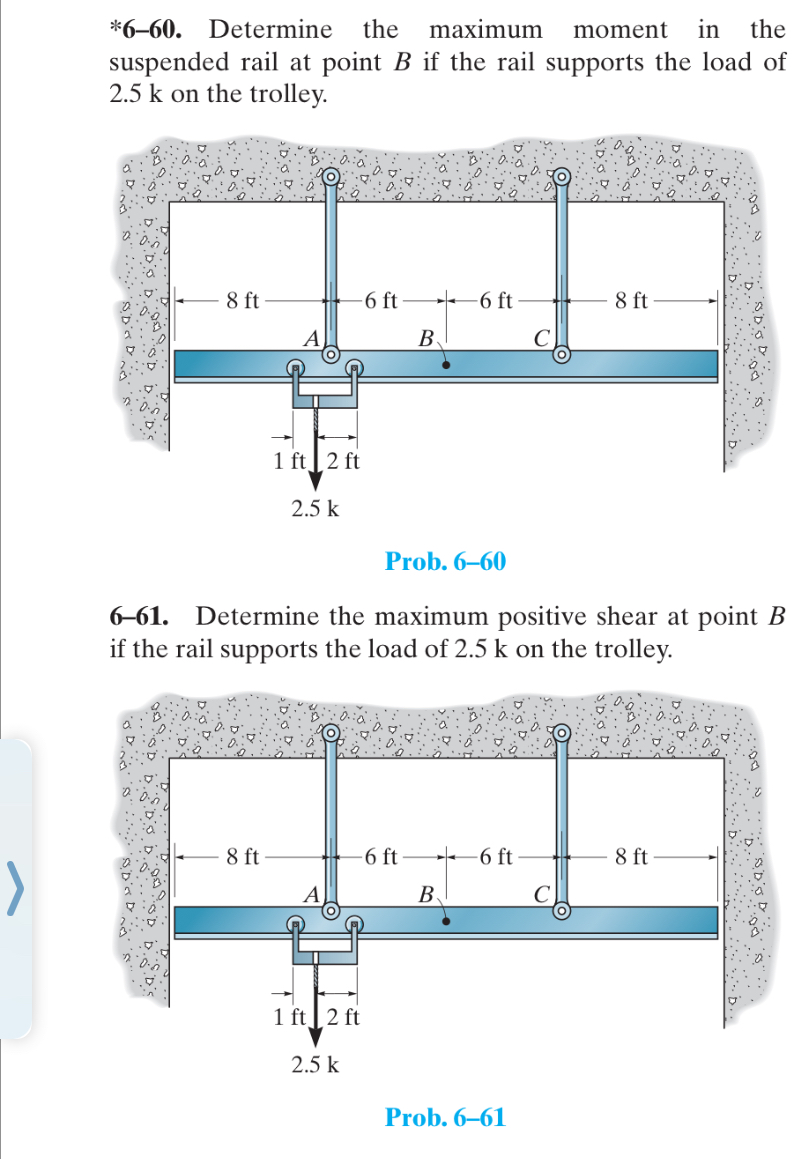

*6-60. Determine the maximum moment in the suspended rail at point B if the rail supports the load of 2.5 k on the trolley.
Prob. 6-60
6-61. Determine the maximum positive shear at point B if the rail supports the load of 2.5 k on the trolley.
Prob. 6-6
* 6 - 6 0 . Determine the maximum moment in the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Determine the maximum moment in the suspended rail at point B if the rail supports the load of 2.5 k on the trolley. 8 ft- 8 ft -6 ft -6 ft B, A. 1 ft|2 ft 2.5 k

Q:

Determine the maximum positive shear at point B if the rail supports the load of 2.5 k on the trolley. 8 ft -6 ft--6 ft - 8 ft B. 1 ft|2 ft 2.5 k
