Question: 6 . A temperature control system is found to have zero error to a constant tracking input and an error of ( 0 .

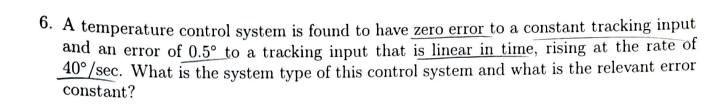

6. A temperature control system is found to have zero error to a constant tracking input and an error of \(0.5^{\circ}\) to a tracking input that is linear in time, rising at the rate of \(40^{\circ}/\mathrm{sec}\). What is the system type of this control system and what is the relevant error constant?
6 . A temperature control system is found to have

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
