Question: 6. Let x(t) be a time continuous signal as given in the figure below: x(1) 2 1 -21 T ol 2T 3T 4T 5T 23

6. Let x(t) be a time continuous signal as given in

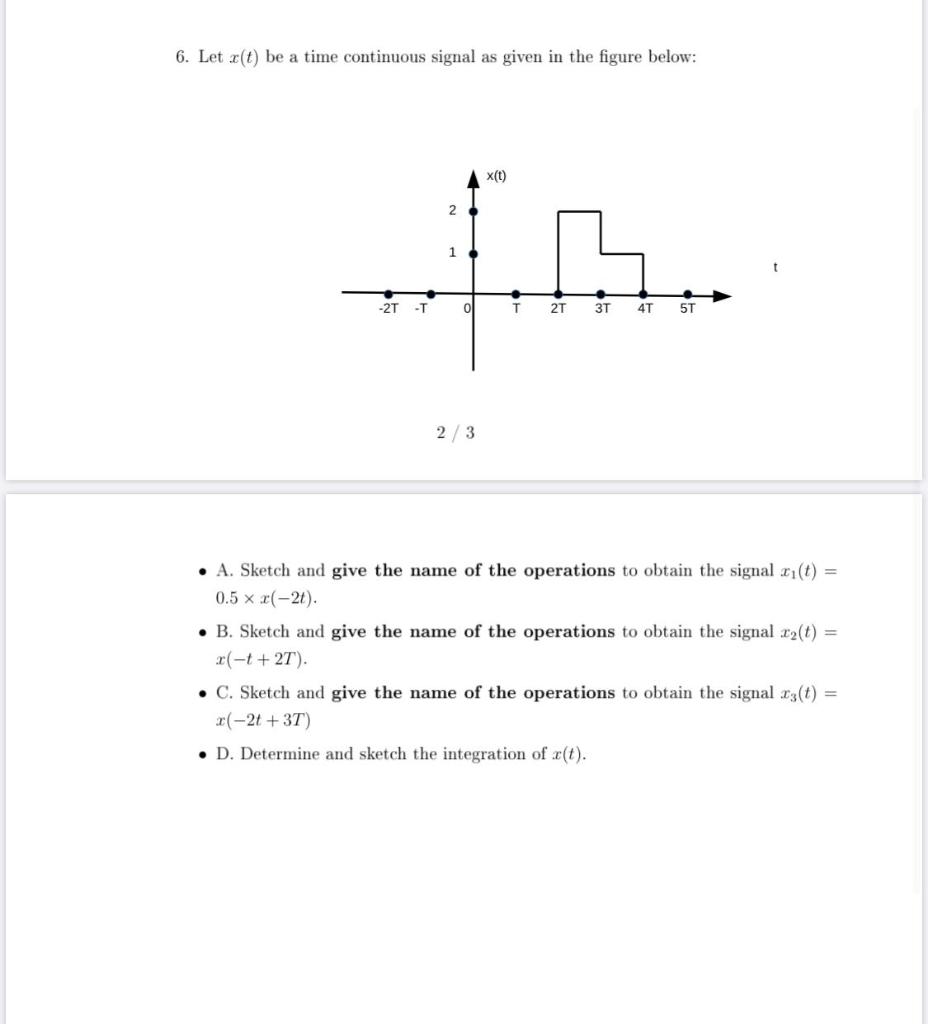

6. Let x(t) be a time continuous signal as given in the figure below: x(1) 2 1 -21 T ol 2T 3T 4T 5T 23 A. Sketch and give the name of the operations to obtain the signal (t) = 0.5 x .(-21). B. Sketch and give the name of the operations to obtain the signal zz(t) = x(-+ + 2T). C. Sketch and give the name of the operations to obtain the signal 23(t) = X(-2t +3T) D. Determine and sketch the integration of x(t)
