Question: (6 points) 1.5. Write assembly code to implement the circuit shown in Fig 1 or the modified circuit you obtained in the previous question. The

(6 points) 1.5. Write assembly code to implement the circuit shown

(6 points) 1.5. Write assembly code to implement the circuit shown in Fig 1 or the modified circuit you obtained in the previous question. The inputs and outputs should be as follows: A is stored at location 10H B is stored at location 20H Result F is stored at location 30H

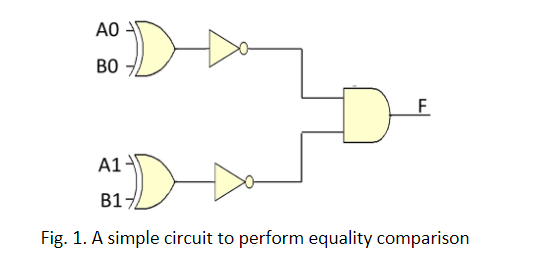

Fig. 1. A simple circuit to perform equality comparison
