Question: ( 6 ) Two forces are applied on the bracket as shown, and the magnitude of the resultant of the two forces is 2 0

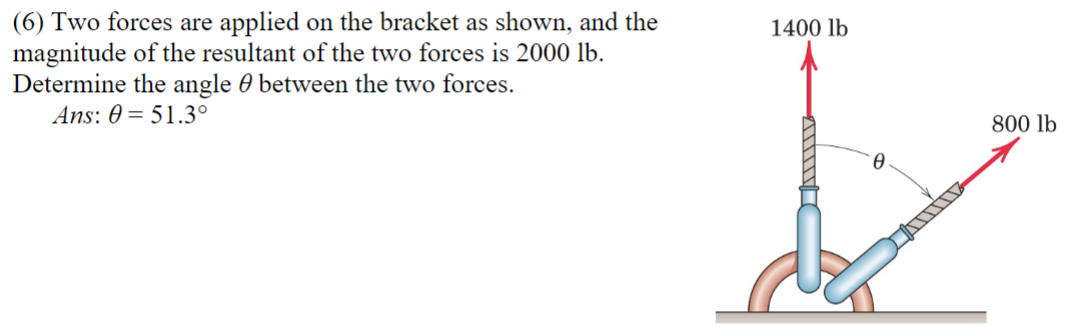

(6) Two forces are applied on the bracket as shown, and the
magnitude of the resultant of the two forces is 2000 lb .
Determine the angle between the two forces.
Ans: =51.3
( 6 ) Two forces are applied on the bracket as

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
