Question: 6 . Write a Boolean expression for the output of each of the logic circuits shown below: ( 1 0 points ) ( 1 )

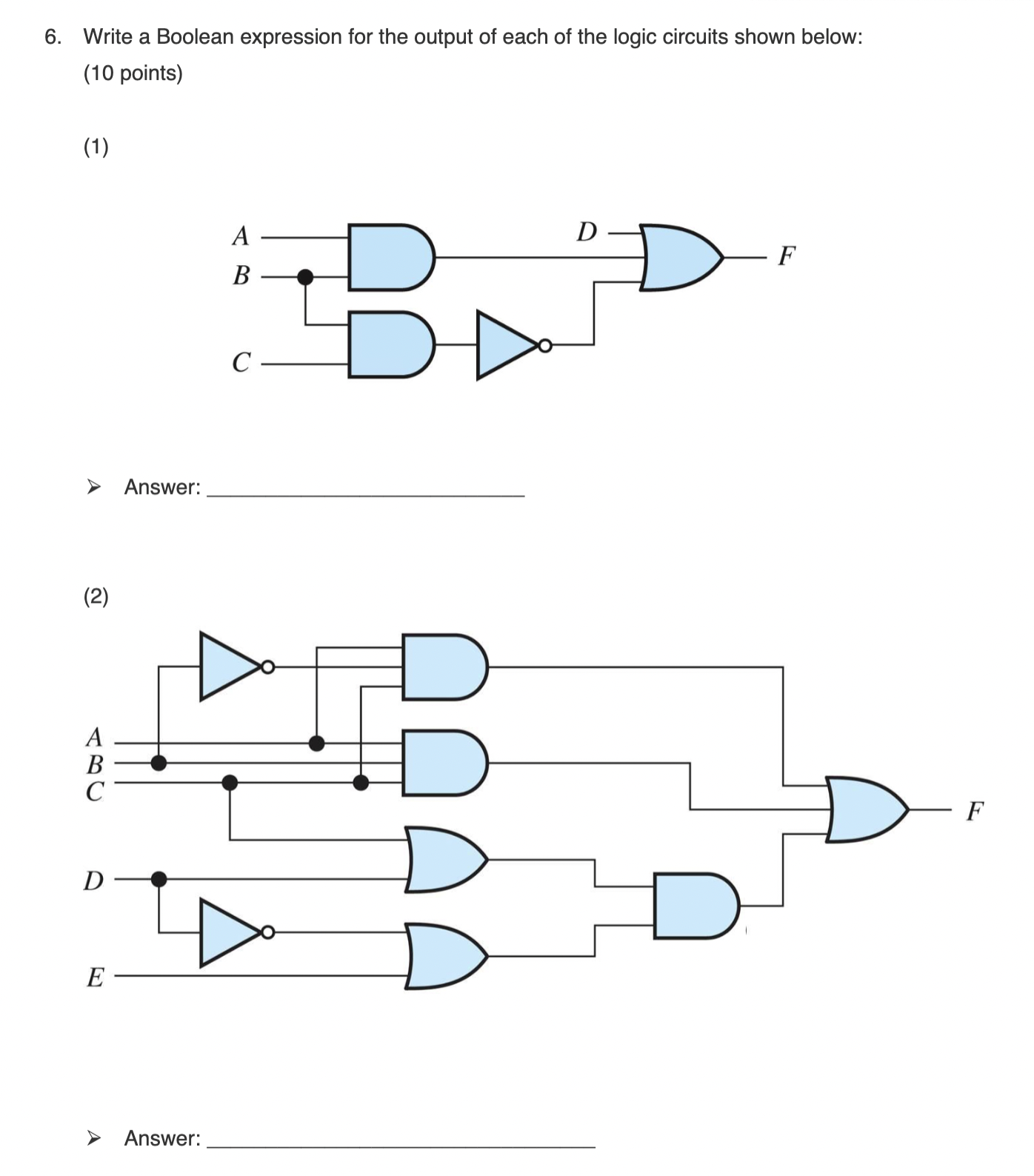

6. Write a Boolean expression for the output of each of the logic circuits shown below: (10 points)
(1)
> Answer:
(2)
6 . Write a Boolean expression for the output of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
