Question: 6.A Project Schedule (CPM & Gantt Chart) Apply Critical Path Method for the given the Network Diagram. Provide your answer, below. A. Identify the all

6.A Project Schedule (CPM & Gantt Chart) Apply

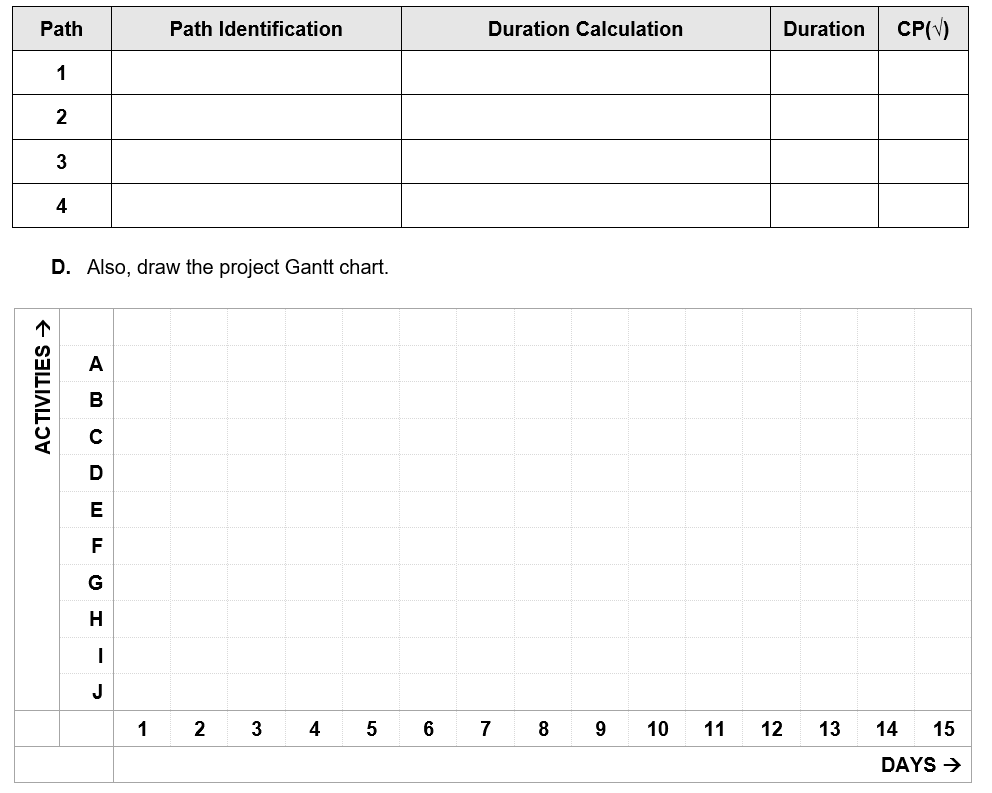

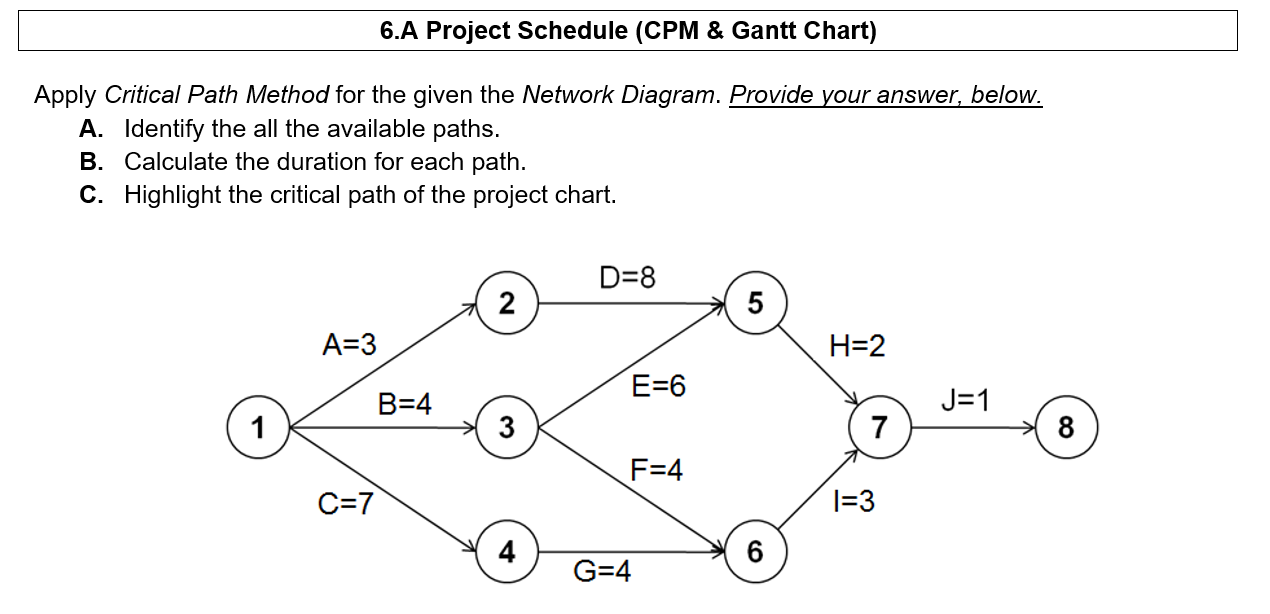

6.A Project Schedule (CPM & Gantt Chart) Apply Critical Path Method for the given the Network Diagram. Provide your answer, below. A. Identify the all the available paths. B. Calculate the duration for each path. C. Highlight the critical path of the project chart. D=8 2 5 A=3 H=2 E=6 B=4 J=1 3 7 8 F=4 C=7 1=3 4 6 G=4 Path Path Identification Duration Calculation Duration CP(V) 1 2 3 4 D. Also, draw the project Gantt chart. A ACTIVITIES B E H - I J 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 DAYS
