Question: 7 - 1 . Consider the two - loop circuit shown in Fig. P 7 . 1 . The currents I 1 and I 2

7-1. Consider the two-loop circuit shown in Fig. P7.1. The currents I1 and I2(in amps ) satisfy the following system of equations:
-5000I1+1000I2=-8
1000I1=10+3000I2
(a) Find I1 and I2 using the substitution method.
(b) Write the system of equations in the matrix form AI=b, where I=[I1I2].
(c) Find I1 and I2 using Cramer's rule.
(d) Find I1 and I2 using the matrix algebra method. Perform all matrix computations by hand, and show all steps.

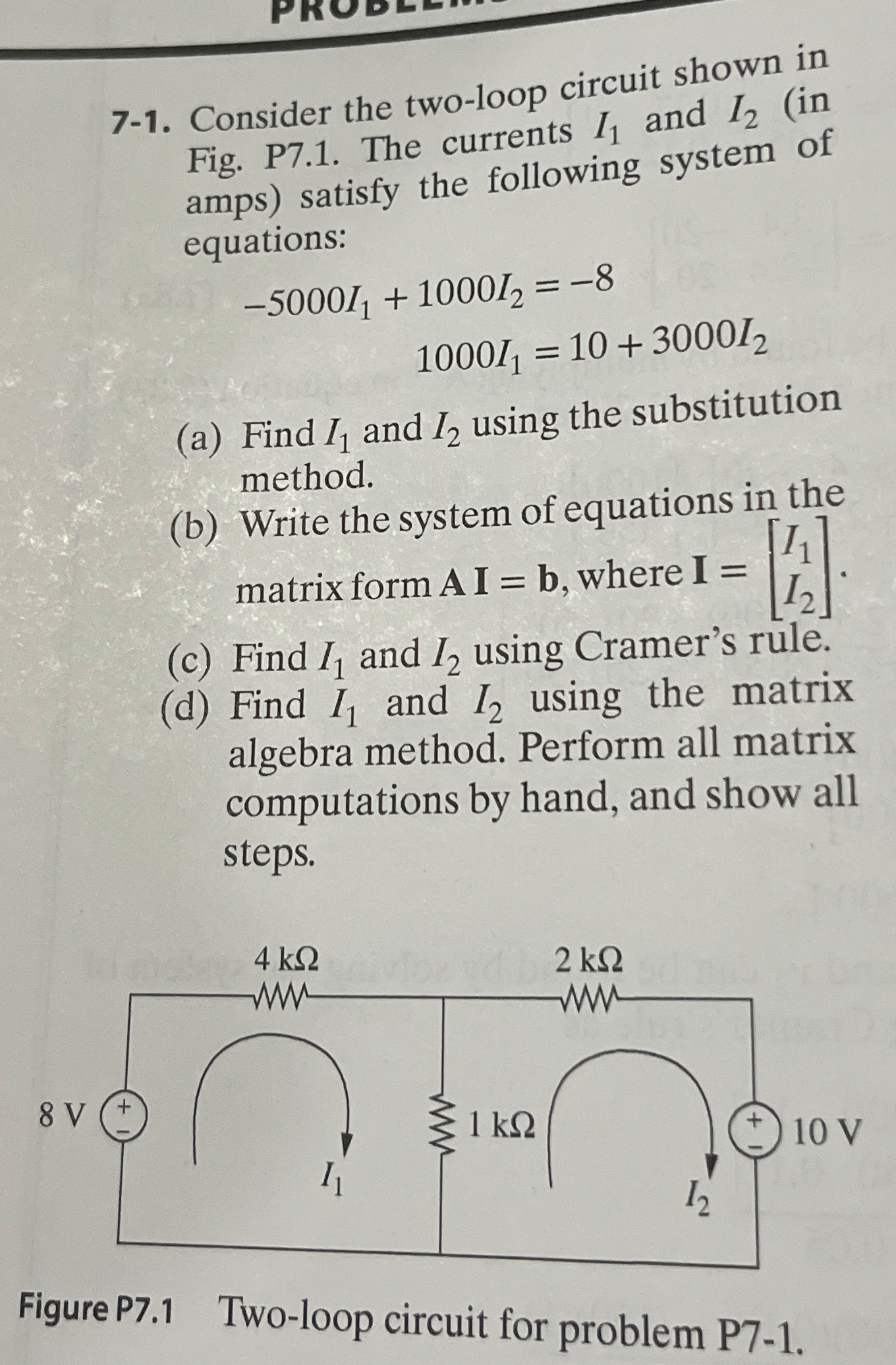

Figure P7.1 Two-loop circuit for problem P7-1.
