Question: 7 2 In Fig. P 2 . 7 2 , gate A B is circular. Find the moment of the hydrostatic force on this gate

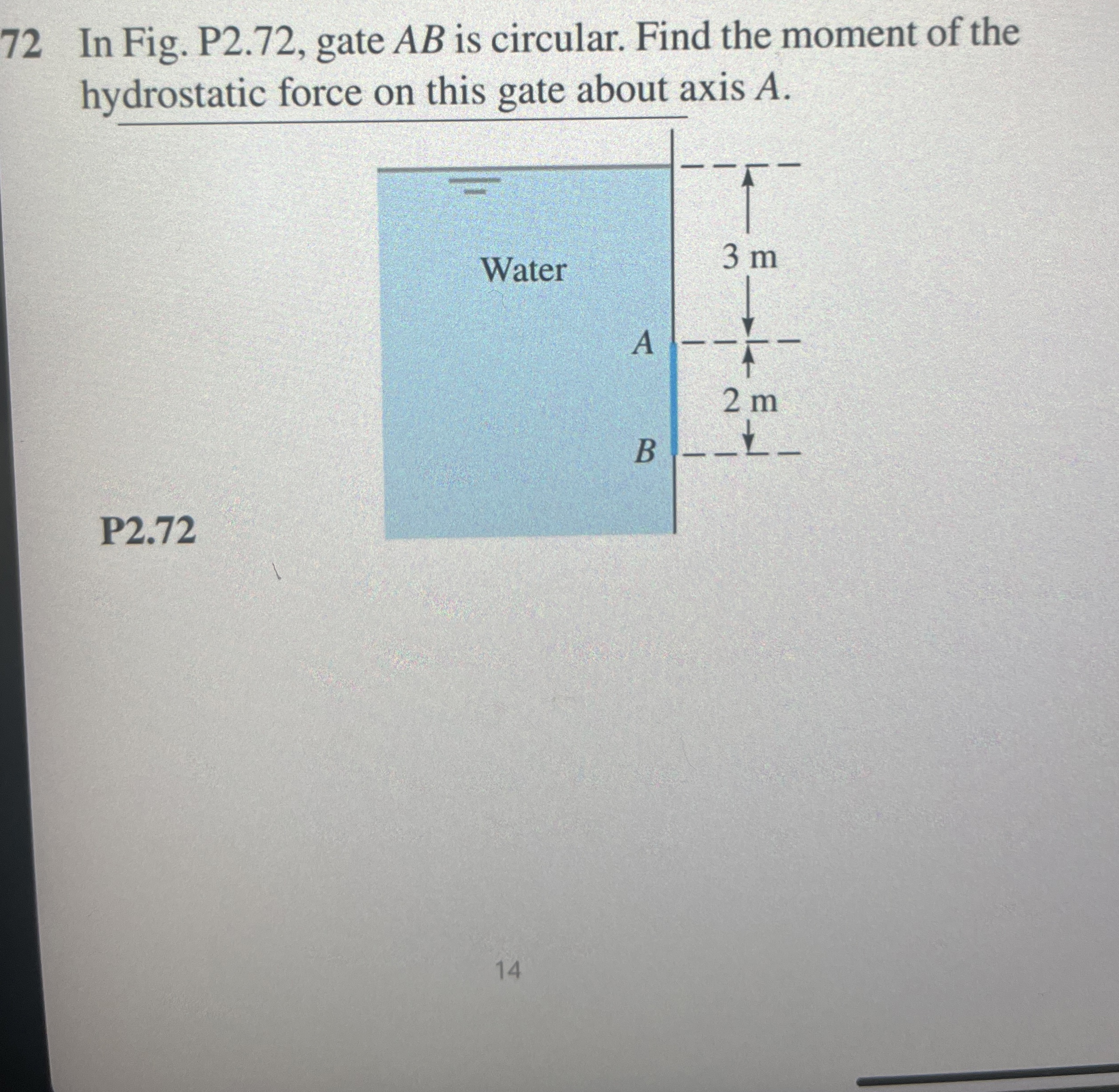

72 In Fig. P2.72, gate AB is circular. Find the moment of the hydrostatic force on this gate about axis A.
P2.72
14
7 2 In Fig. P 2 . 7 2 , gate A B is circular.
