Question: ( 7 ) For the simple beam with loading shown, determine the internal shear force and bending moment at the section 3 m to the

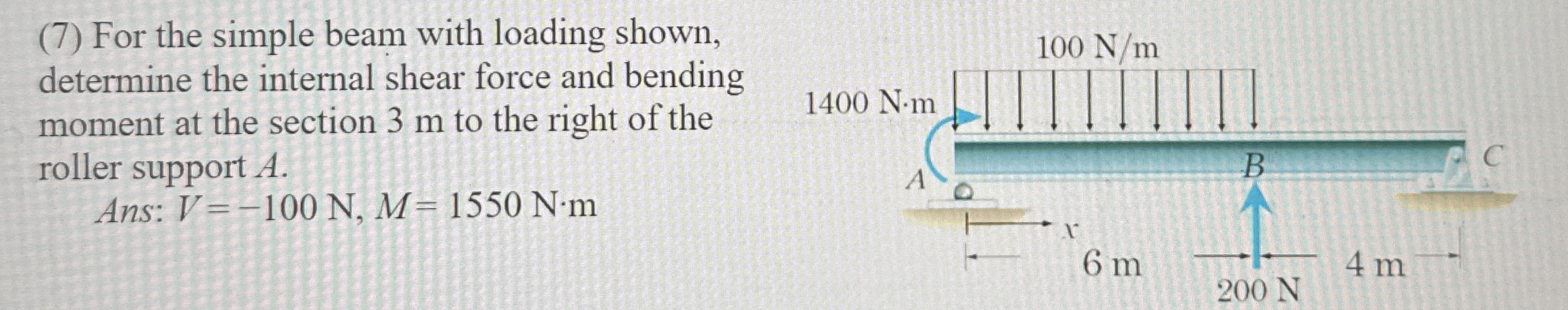

(7) For the simple beam with loading shown, determine the internal shear force and bending moment at the section 3 m to the right of the roller support A.
Ans: V=-100N,M=1550N*m
( 7 ) For the simple beam with loading shown,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
