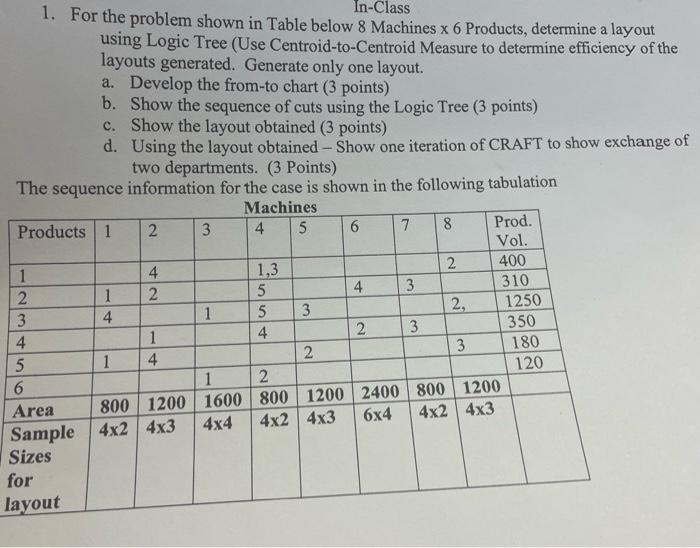

8 1. For the problem shown in Table below 8 Machines x 6 Products, determine a layout In-Class using Logic Tree (Use Centroid-to-Centroid Measure to determine efficiency of the layouts generated. Generate only one layout. a. Develop the from-to chart (3 points) b. Show the sequence of cuts using the Logic Tree (3 points) c. Show the layout obtained (3 points) d. Using the layout obtained - Show one iteration of CRAFT to show exchange of two departments. (3 Points) The sequence information for the case is shown in the following tabulation Machines Products 1 2 3 4 5 6 7 8 Prod. Vol. 1 4 1,3 2 400 2 1 2 5 4 3 310 4 3 1 5 3 1250 2, 4 1 4 2 3 350 3 5 4 180 2 1 120 6 1 2 Area 800 1200 1600 800 1200 2400 800 1200 4x4 4x2 4x3 6x4 4x2 4x3 Sample 4x2 4x3 Sizes for layout 8 1. For the problem shown in Table below 8 Machines x 6 Products, determine a layout In-Class using Logic Tree (Use Centroid-to-Centroid Measure to determine efficiency of the layouts generated. Generate only one layout. a. Develop the from-to chart (3 points) b. Show the sequence of cuts using the Logic Tree (3 points) c. Show the layout obtained (3 points) d. Using the layout obtained - Show one iteration of CRAFT to show exchange of two departments. (3 Points) The sequence information for the case is shown in the following tabulation Machines Products 1 2 3 4 5 6 7 8 Prod. Vol. 1 4 1,3 2 400 2 1 2 5 4 3 310 4 3 1 5 3 1250 2, 4 1 4 2 3 350 3 5 4 180 2 1 120 6 1 2 Area 800 1200 1600 800 1200 2400 800 1200 4x4 4x2 4x3 6x4 4x2 4x3 Sample 4x2 4x3 Sizes for layout
