Question: 8 . 1 Use the unit load method to calculate the vertical and horizontal displacements at joint A . The cross - sectional area and

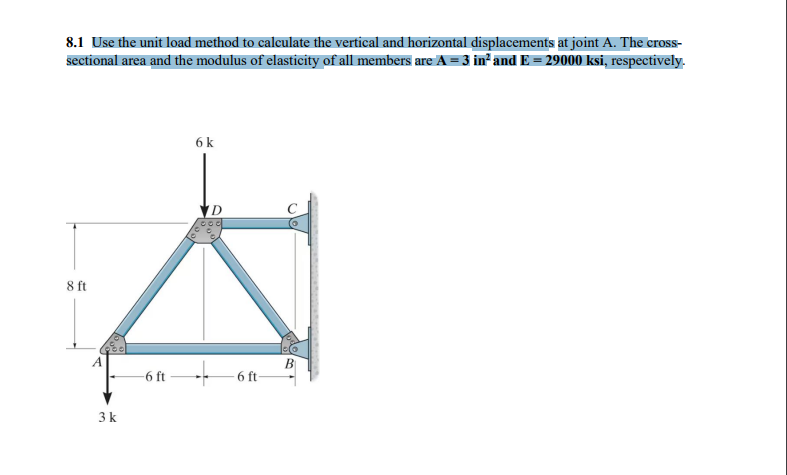

8.1 Use the unit load method to calculate the vertical and horizontal displacements at joint A. The cross-
sectional area and the modulus of elasticity of all members are A=3in2 and E=29000ksi, respectively.
8 . 1 Use the unit load method to calculate the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
