Question: 8. Modify the circuit in Figure 3 by using a current source in the tail of the circuit instead of a passive resistor. Vee 15

8. Modify the circuit in Figure 3 by using a current

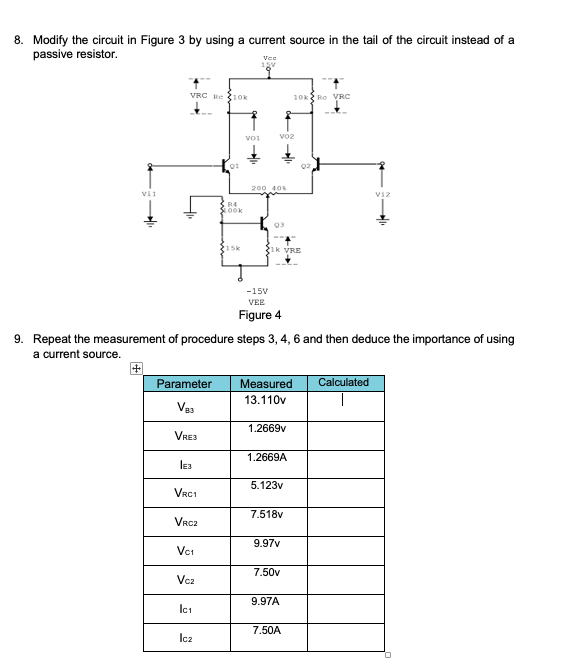

8. Modify the circuit in Figure 3 by using a current source in the tail of the circuit instead of a passive resistor. Vee 15 VRC Resok 10K Re VRC 2 VO1 VOZ 02 200401 vi 1 Vi2 RE OOK IK VRE -15V VEE Figure 4 9. Repeat the measurement of procedure steps 3, 4, 6 and then deduce the importance of using a current source. Parameter Measured Calculated 13.110v Vas + 1.2669v VRES 1.2669A IES 5.123v VRC1 7.518V VRCZ 9.97v Vc1 7.50v Vcz 9.97A Ic1 7.50A Icz 8. Modify the circuit in Figure 3 by using a current source in the tail of the circuit instead of a passive resistor. Vee 15 VRC Resok 10K Re VRC 2 VO1 VOZ 02 200401 vi 1 Vi2 RE OOK IK VRE -15V VEE Figure 4 9. Repeat the measurement of procedure steps 3, 4, 6 and then deduce the importance of using a current source. Parameter Measured Calculated 13.110v Vas + 1.2669v VRES 1.2669A IES 5.123v VRC1 7.518V VRCZ 9.97v Vc1 7.50v Vcz 9.97A Ic1 7.50A Icz

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
