Question: (8%) Problem 10: A block is resting on a wooden plank. There is a hinge on one end of the J: plank which allows the

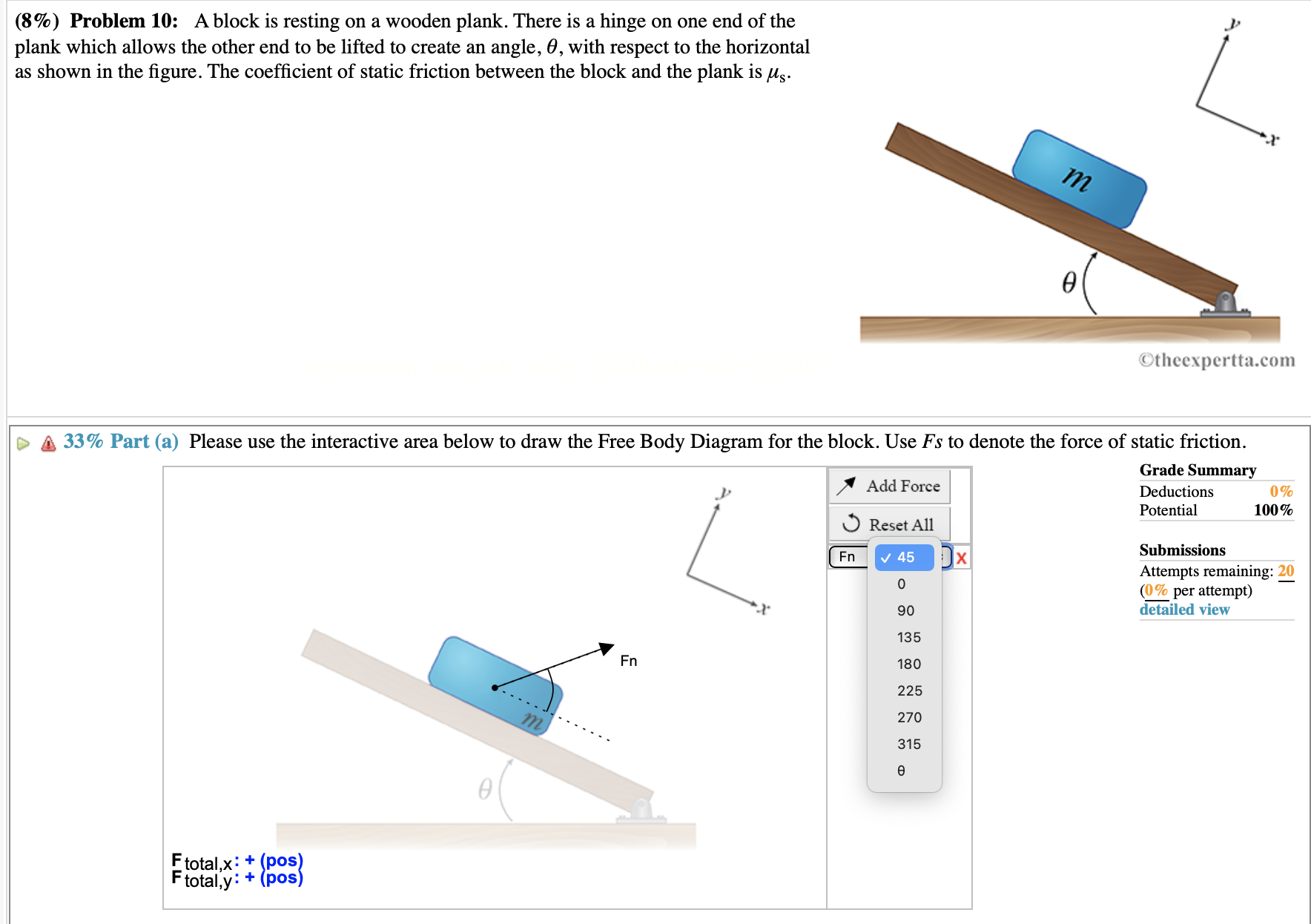

(8%) Problem 10: A block is resting on a wooden plank. There is a hinge on one end of the J: plank which allows the other end to be lifted to create an angle, 0, with respect to the horizontal as shown in the gure. The coefcient of static friction between the block and the plank is ,us. tlmcxpcrlta.cotn [> A 33% Part (3) Please use the interactive area below to draw the Free Body Diagram for the block, Use Fs to denote the force of static friction. Grade Summary J) Deductions 0% Potential 100% Submissions Attempts remaining: a (% per attempt) detailed view Ftotal,x: + p05; Ftotal,y= + pos

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

Shen and Smith [Ind. Eng. Chem. Fundam., 7, 100-105 (1968)] measured equilibrium-adsorption isotherms at four different temperatures for pure benzene vapor on silica gel, having the following...

(8%) Problem 10: A block is resting on a wooden plank. There is a hinge on one end of the J) plank which allows the other end to be lifted to create an angle, 0, with respect to the horizontal as...

usb06ca.theexpertta.com Gateway - SF State... Course: PHYS 0222... Write and submit La. z Office hours - Zoom X ta The Expert TA | Hum... Sy 27~{\\circ}=9.81tan(t... Dashboard G screenshot mac - G......

It doesn't like any of my expression previously tried (30%) Problem S: A block is resting on a wooden plank. There is a hinge on one end of the plank which allows the other end to be lifted to create...

O Problem 7: A block is resting on a wooden plank. There is a hinge on one end of the plank which vs the other end to be lifted to create an angle, 0, with respect to the horizontal as shown in the...

(10%) Problem 2: A block with a mass of m = 1.5 kg rests on a wooden plank. The coe'icient of static friction between the block and the plank is u; = I9. .78. One end of the board is attached to a...

(7%) Problem 10: A 69-kg man stands on a scale in an elevator that accelerates upwards from rest to 7.5 m/'s in 2.00 s. @theexpertta.com - tracking raccordance with Expert TA's Terms of Service....

(10%) Problem 9: Consider the 61 kg ice skater being pushed by two others shown in the figure. The coefficient of static friction is My=0.4 and kinetic is uk=0.02. Randomized Variables m = 61 kg F 1...

Problem 2: A block with a mass ofm = 1.5 kg rests on a wooden plank. The coefficient of static friction between the block and the plank is #3 = 0.44. One end of the board is attached to a hinge so...

Please answer a-f. (10%) Problem 3: A block with a mass of m = I .5 kg rests on a wooden plank, The coefcient of static friction between the block and the plank is [AS = 0.46. One end of the board is...

Problem 2: A block with a mass ofm = 1.5 kg rests on a wooden plank. The coefficient of static friction between the block and the plank is #3 = 0.44. One end of the board is attached to a hinge so...
