Question: 9. 1 ' . ' 0151??? Th: magnet below 13 magnetically north and is inducing a, current in the 1 as s own. In which

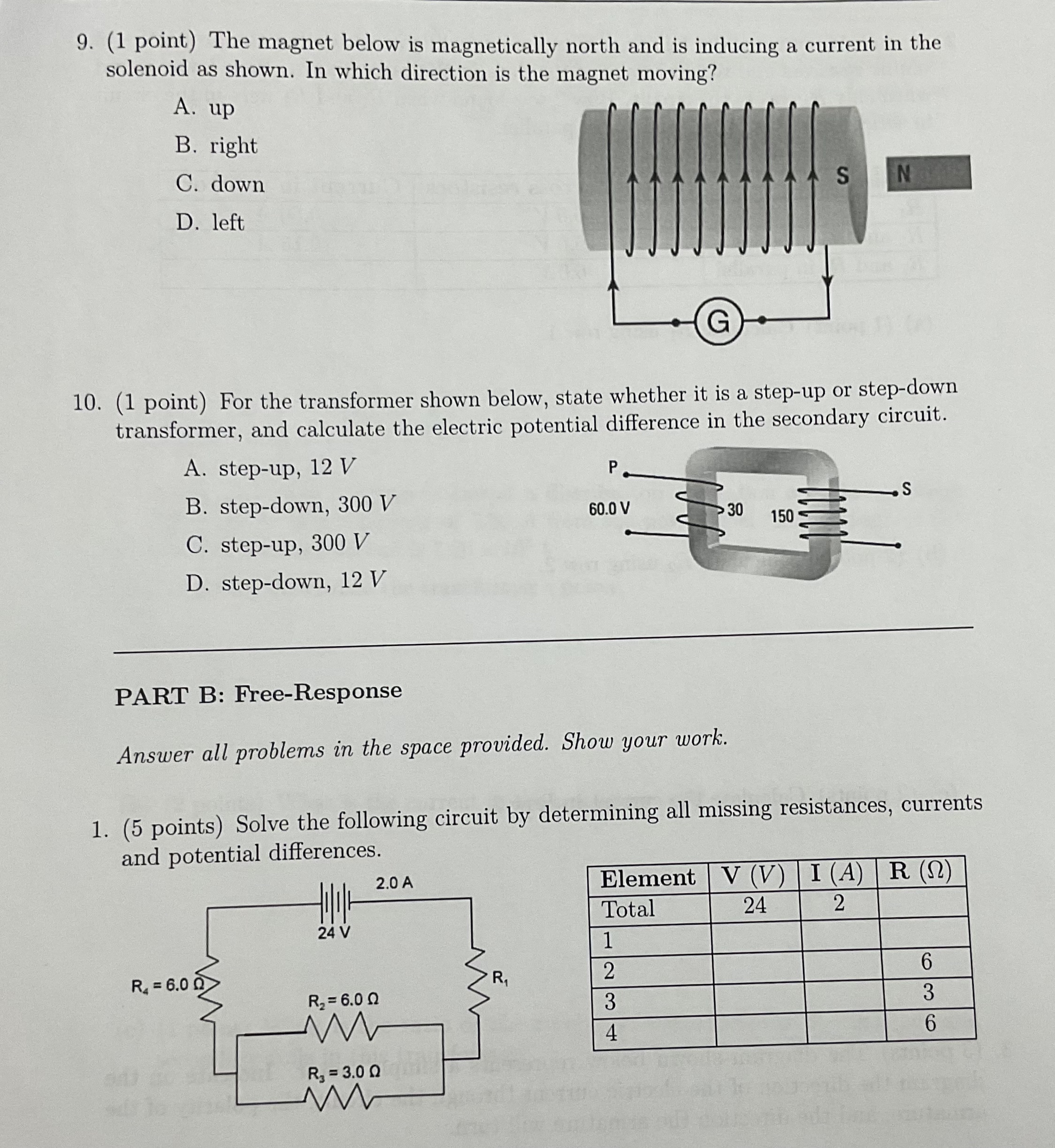

9. 1 ' . ' 0151??? Th: magnet below 13 magnetically north and is inducing a, current in the 1 as s own. In which direction is the magnet moving? A. up B. right C. down D. left 10- (1 point) For the transformer shown below, state whether it is a. step-up or step-down transformer, and calculate the electric potential difference in the secondary circuit. A. step-up, 12 V B. step-down, 300 V C. step-up, 300 V D. stepdown, 12 V PART B: Free-Response Answer all problems in the space provided. Show your work. 1. (5 points) Solve the following circuit by determining all missing resistances, currents and potential differences

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
