Question: * 9 - 2 4 . Two boards each having the same E I and length L are crossed perpendicular to each other as shown.

* 9 - 24 .

Two boards each having the same

E I

and length

L

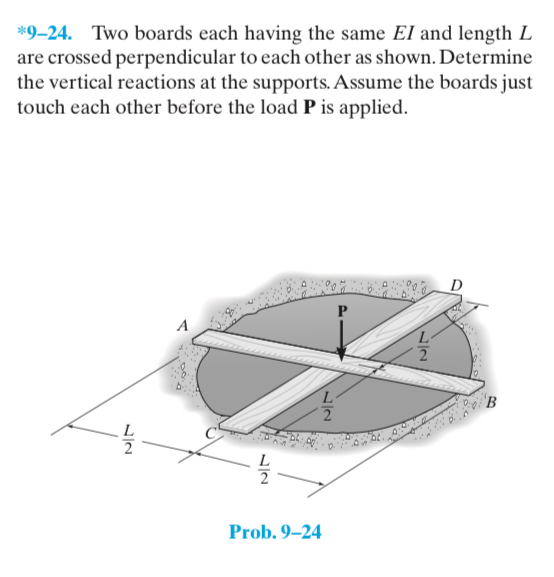

are crossed perpendicular to each other as shown. Determine the vertical reactions at the supports. Assume the boards just touch each other before the load

P

is applied.

Prob.

9 - 24

* 9 - 2 4 . Two boards each having the same E I

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
