Question: 9 - 5 3 . The 2 0 1 4 - T 6 aluminum rod A C is reinforced with the firmly bonded A 9

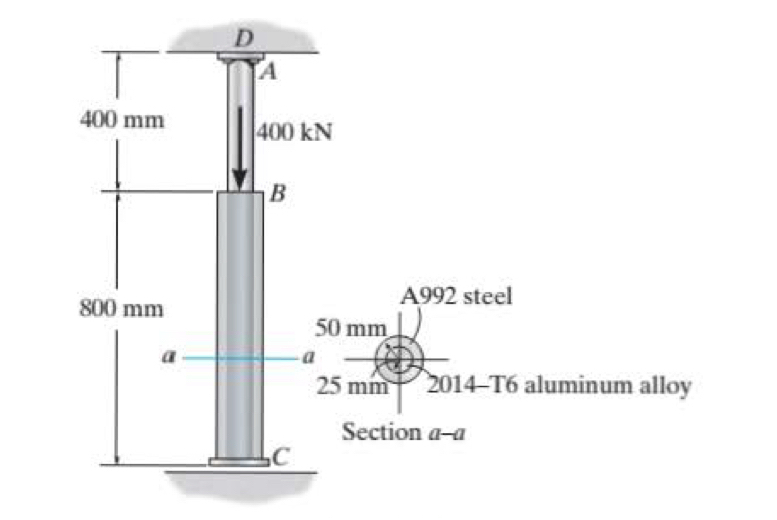

9-53. The 2014-T6 aluminum rod AC is reinforced with the
firmly bonded A992 steel tube BC. If the assembly fits
snugly between the rigid supports so that there is no gap at C,
determine the support reactions when the axial force of
400 kN is applied. The assembly is attached at D.
9 - 5 3 . The 2 0 1 4 - T 6 aluminum rod A C is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
