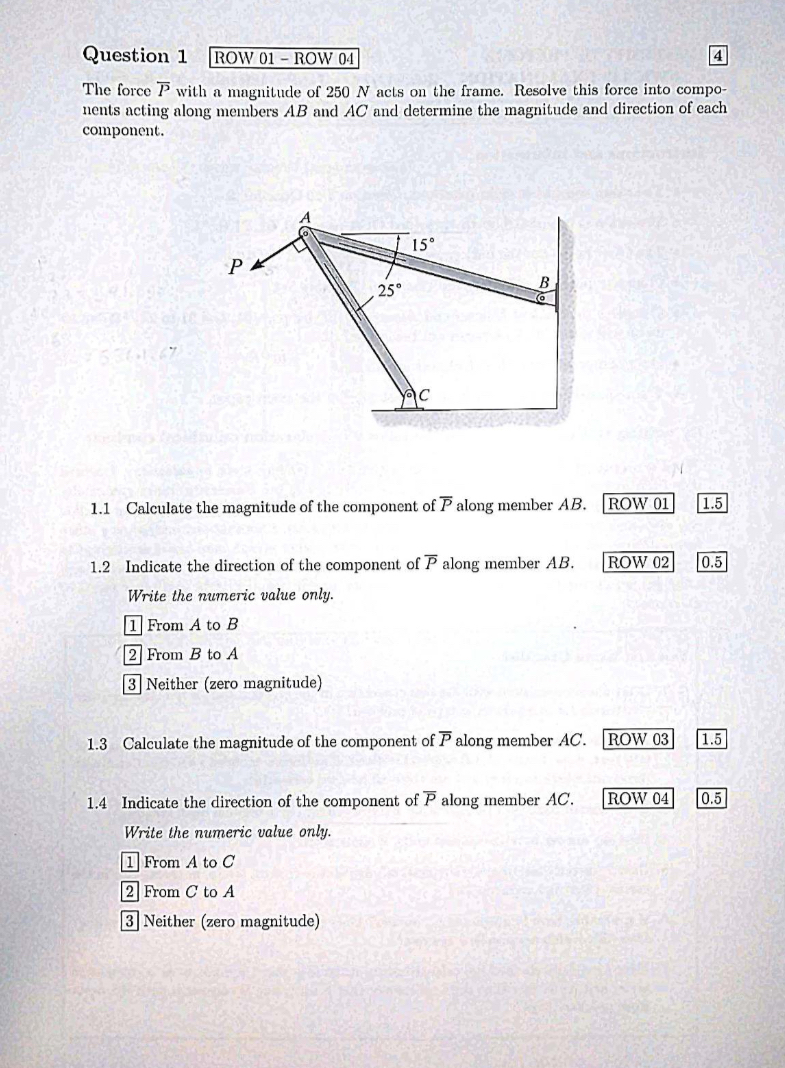

Question $1$ ROW $01-$ROW $04$

$4$

The force $\frac{?}{\text{b}\text{a}\text{r}}(P)$ with a magnitude of $250$ N acts on the frame. Resolve this force into components acting along members $AB$ and $AC$ and determine the magnitude and direction of each component.

$1\mathrm{.}1$ Calculate the magnitude of the component of $\frac{?}{\text{b}\text{a}\text{r}}(P)$ along member $AB.$

$1\mathrm{.}5$

$1\mathrm{.}2$ Indicate the direction of the component of $\frac{?}{\text{b}\text{a}\text{r}}(P)$ along member $AB.$

ROW $02$

$0\mathrm{.}5$

Write the numeric value only.

$1$ From $A$ to $B$

$(2)$ From $B$ to $A$

$3$ Neither $($zero magnitude$)$

$1\mathrm{.}3$ Calculate the magnitude of the component of $\frac{?}{\text{b}\text{a}\text{r}}(P)$ along member $AC.$ ROW $031\mathrm{.}5$

$1\mathrm{.}4$ Indicate the direction of the component of $\frac{?}{\text{b}\text{a}\text{r}}(P)$ along member $AC.$ ROW $040\mathrm{.}5$

Write the numeric value only.

From $A$ to $C$

From $C$ to $A$

$3$ Neither $($zero magnitude$)$
