Question: 9 . 7 3 and 9 . 7 4 For the cantilever beam and loading shown, determine the slope and deflection at point C .

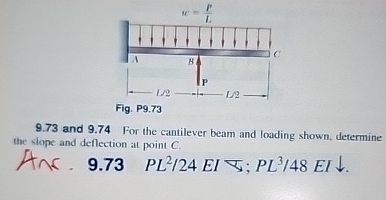

9.73 and 9.74 For the cantilever beam and loading shown, determine the slope and deflection at point C.
An.9.73PL224EI; PL348EIdarr.
