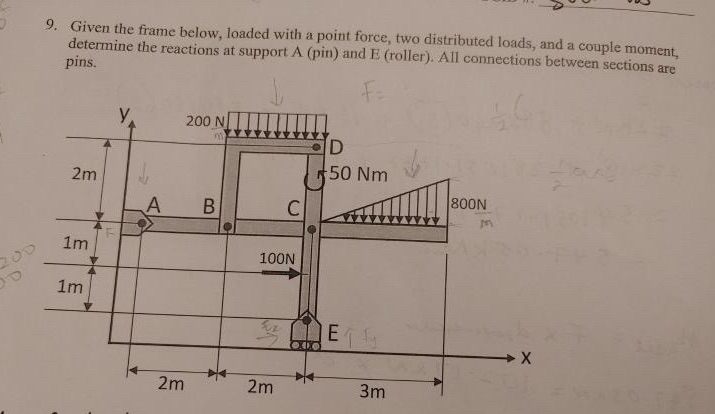

Question: 9. Given the frame below, loaded with a point force, two distributed loads, and a couple moment, determine the reactions at support A (pin)

9. Given the frame below, loaded with a point force, two distributed loads, and a couple moment, determine the reactions at support A (pin) and E (roller). All connections between sections are pins. 2m 200 P 1m 1m F 200 N D 50 Nm A 800N B C 100N 2m 2m 040 Ey 3m X
