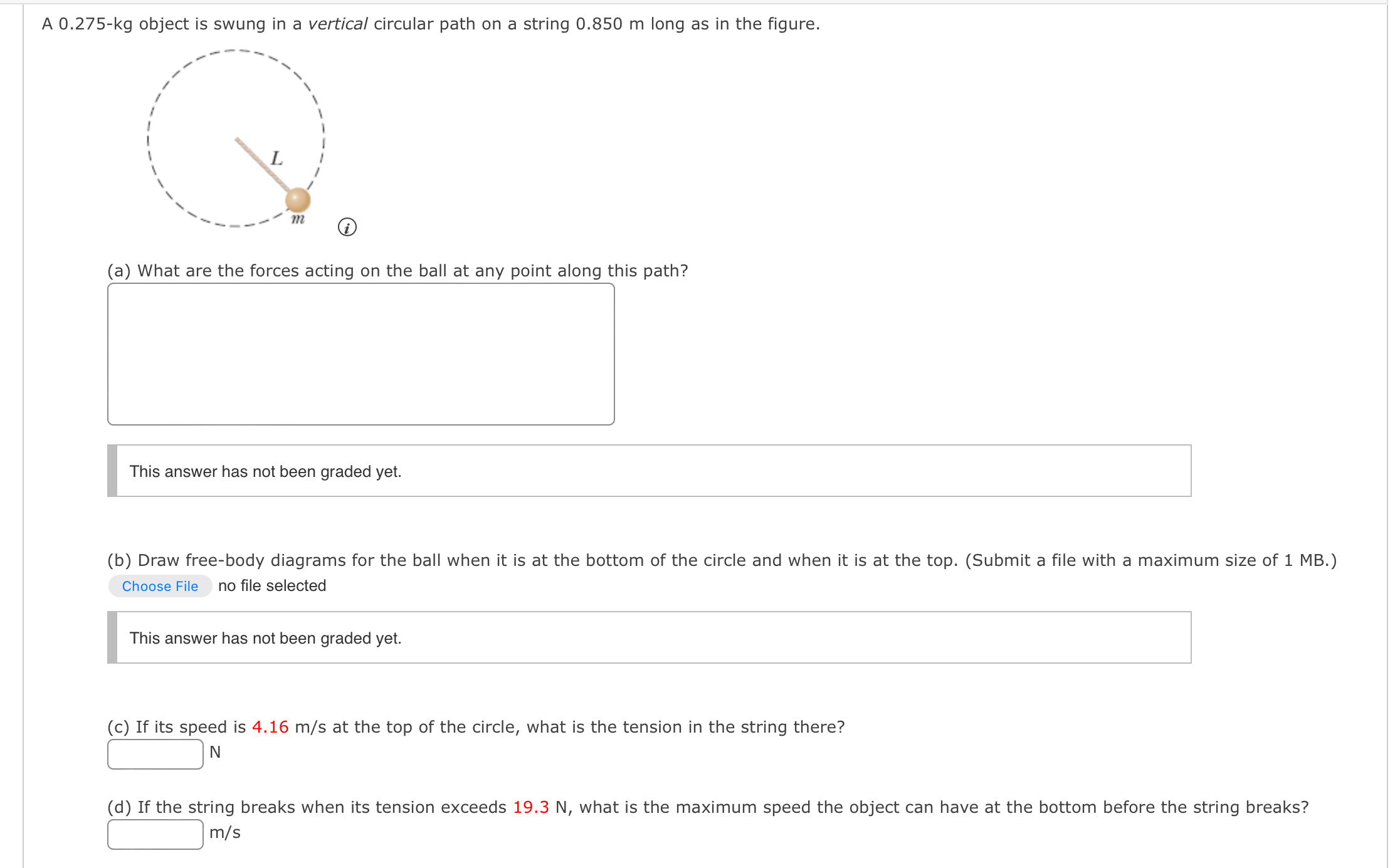

A $0\mathrm{.}275-kg$ object is swung in a vertical circular path on a string $0\mathrm{.}850$ m long as in the figure.

$($a$)$ What are the forces actina on the ball at anv Doint alona this path?

$$

This answer has not been graded yet.

$($b$)$ Draw free$-$body diagrams for the ball when it is at the bottom of the circle and when it is at the top. $($Submit a file with a maximum size of $1$ MB$.)$ no file selected

$($c$)$ If its speed is $4\mathrm{.}16\frac{m}{s}$ at the top of the circle, what is the tension in the string there?

N

$($d$)$ If the string breaks when its tension exceeds $19\mathrm{.}3$ N $,$ what is the maximum speed the object can have at the bottom before the string breaks? $\frac{m}{s}$
