Question: A 1 3 0 mm diameter circular beam section is loaded as shown. Use E = 1 2 5 GPa. Determine the following, use double

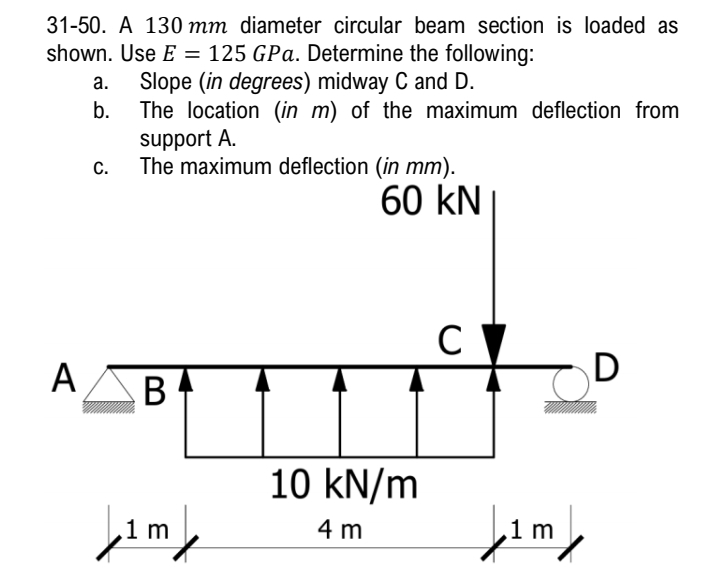

A 130 mm diameter circular beam section is loaded as shown. Use E=125GPa. Determine the following, use double integration method:
a. Slope (in degrees) midway C and D.
b. The location (in m) of the maximum deflection from support A.
c. The maximum deflection (in mm ).
A 1 3 0 mm diameter circular beam section is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
