Question: A 2 , 4 0 0 - ft - long, 2 - ft - diameter pipeline conveys water from a hill - top reservoir to

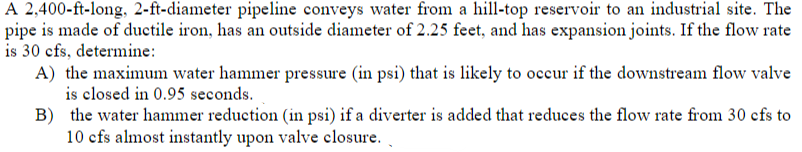

A 2,400-ft-long, 2-ft-diameter pipeline conveys water from a hill-top reservoir to an industrial site. The pipe is made of ductile iron, has an outside diameter of 2.25 feet, and has expansion joints. If the flow rate is 30 cfs , determine:
A) the maximum water hammer pressure (in psi) that is likely to occur if the downstream flow valve is closed in 0.95 seconds.
B) the water hammer reduction (in psi ) if a diverter is added that reduces the flow rate from 30 cfs to 10 cfs almost instantly upon valve closure.
A 2 , 4 0 0 - ft - long, 2 - ft - diameter
