A 3 input , 2 output combinational switch a circuit has the following behavior:

If the control signal, S is zero, the a input is routed directly through to x and the b input is routed to the Y Output

If the control signal, S is 1 , the inputs are switched with a being routed to y and B. being routed to x.

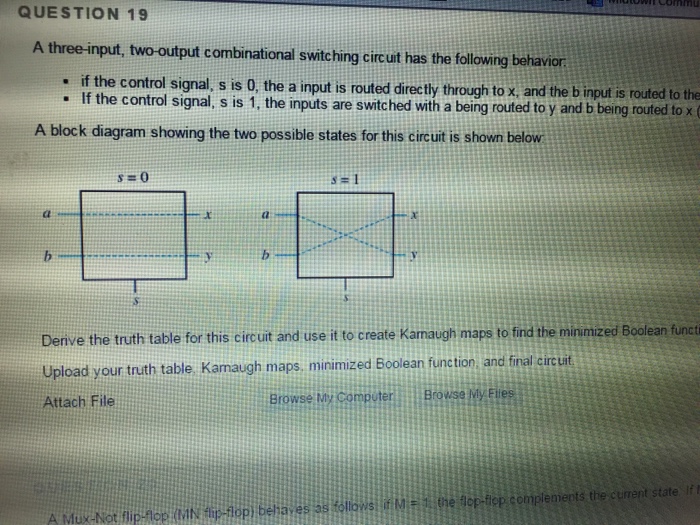

A block diagram showing the two possible states for the circuit as shown below:

Derive the truth table for the circuit....

QUESTION 19 A three-input, two-output combinational switching circuit has the following behavior if the control signal, s is 0, the routed to the the If the control si s is 1, the inputs are switched with a being routed to and b being routed to A block diagram showing the two possible states for this circuit is shown below Derive the truth table for this circuit and use it to create Kamaugh maps to find the minimized Boolean functi Upload your truth table, Kamaugh maps, minimized Boolean function, and final circuit ute Browse My Attach File op comple nie
