Question: A 3 - phase, 1 0 - pole, Y - connected, AC generator has a stator with 6 0 slots, each slot contains 1 2

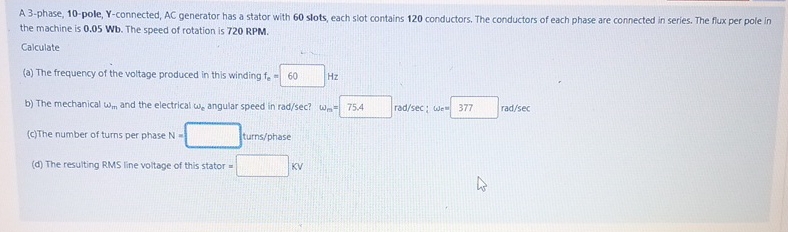

A 3-phase, 10-pole, Y -connected, AC generator has a stator with 60 slots, each slot contains 120 conductors. The conductors of each phase are connected in series. The fiux per pole in the machine is 0.05 Wb . The speed of rotation is 720 RPM .
Calculate
(a) The frequency of the voltage produced in this winding fe= Hz
b) The mechanical m and the electrical e angular speed in radsec?m=radsec : we radsec
(c) The number of turns per phase N= turns/phase
(d) The resulting RMS line voltage of this stator = KV
