Question: A 4 m long timber beam A B is loaded as shown in the figure. The weight density of timber is 4 . 5 k

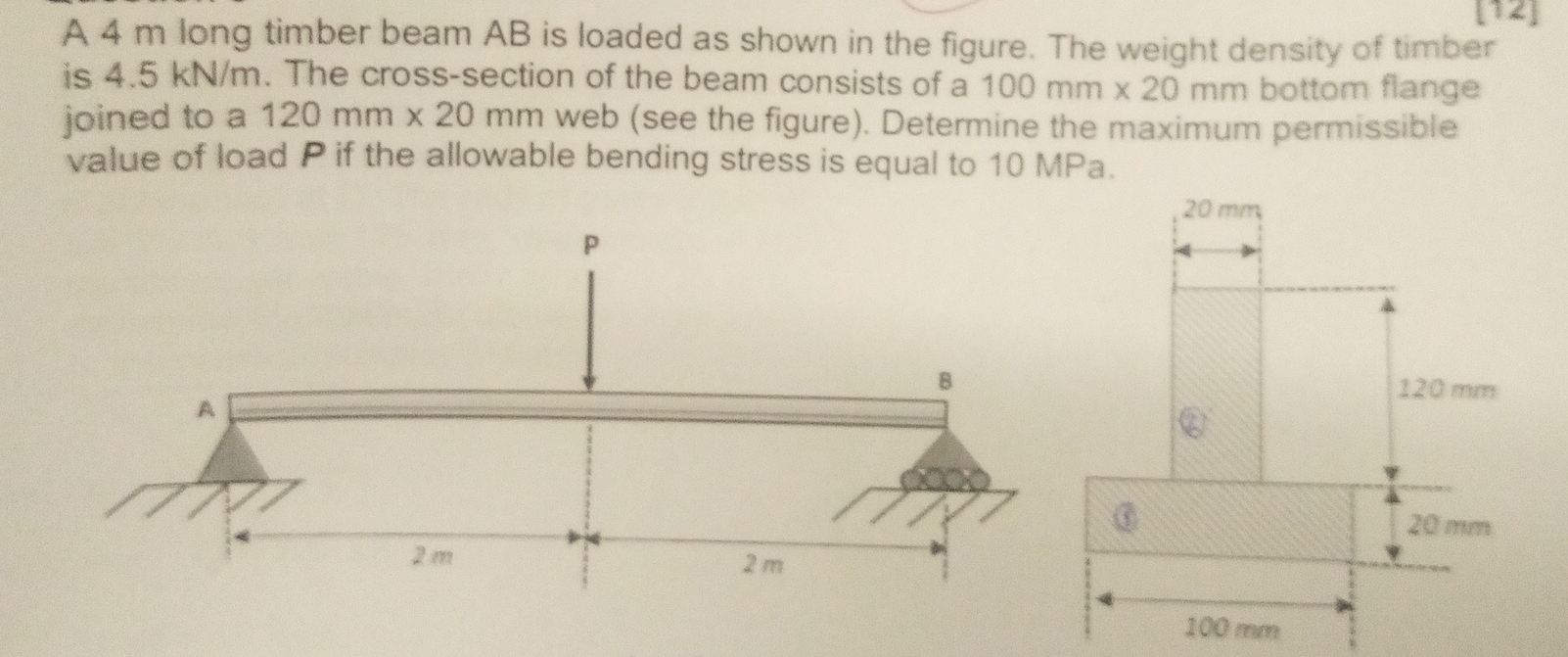

A 4m long timber beam AB is loaded as shown in the figure. The weight density of timber is 4.5kNm. The cross-section of the beam consists of a 100mm20mm bottom flange joined to a 120mm20mm web (see the figure). Determine the maximum permissible value of load P if the allowable bending stress is equal to 10MPa.
A 4 m long timber beam A B is loaded as shown in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
