Question: A 6 1 0 - in . timber beam is strengthened by bolting to it the steel straps as shown. The modulus of elasticity for

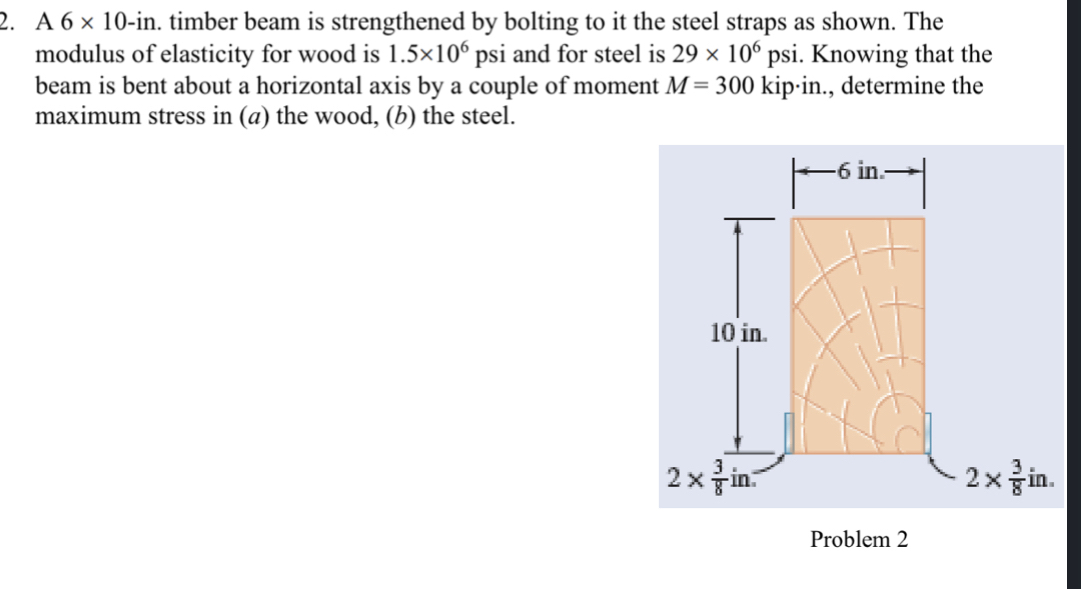

A 610-in. timber beam is strengthened by bolting to it the steel straps as shown. The modulus of elasticity for wood is 1.5106 and for steel is 29106. Knowing that the beam is bent about a horizontal axis by a couple of moment M=300kip*in., determine the maximum stress in (a) the wood, (b) the steel.
Problem 2
A 6 1 0 - in . timber beam is strengthened by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
