Question: A 7 4 cm square gate has its top edge 1 0 m below the water surface. It is on a 4 5 angle and

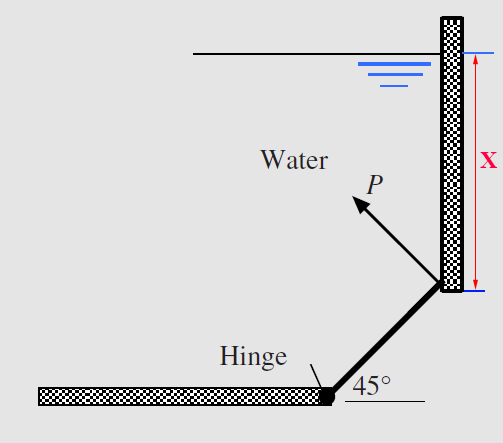

A 74 cm square gate has its top edge 10 m below the water surface. It is on a 45 angle and its bottom edge is hinged as shown in Fig. below., use water =9.81 KN/m31- The force (P) needed to open the gate is ----------
16.63KN
21.43KN
57.63KN
33.17KN
49.83KN
The location of the excerted force from the surface of the water is ?
24.87m
12.26m
16.71m
14.87m
20m
