Question: A 7 - ft boom is held by a ball and socket at A and by two cables EBF and D C ; cable EBF

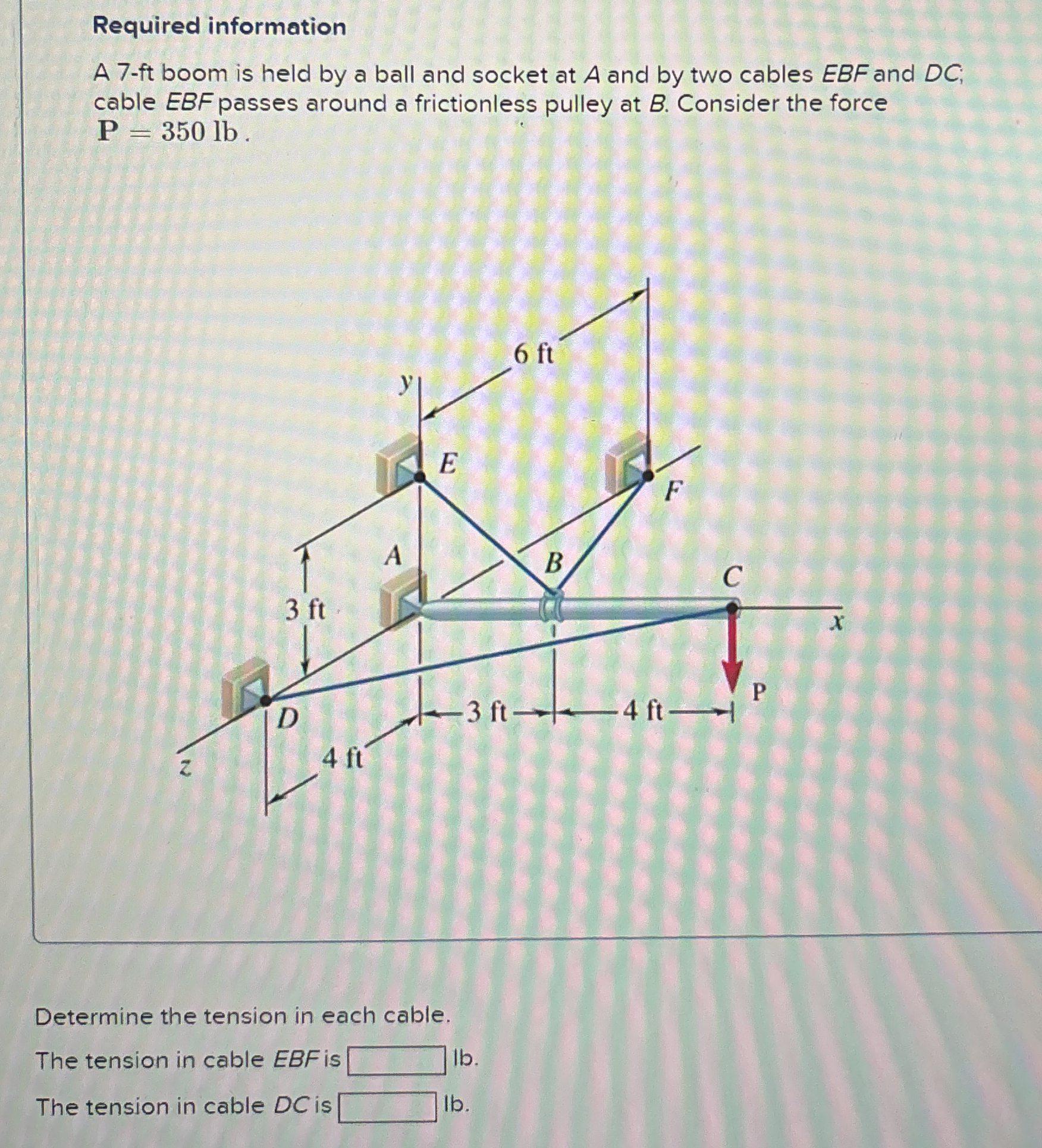

A 7-ft boom is held by a ball and socket at A and by two cables EBF and DC;
cable EBF passes around a frictionless pulley at B. Consider the force
P=350lb
Determine the tension in each cable.
The tension in cable EBF is
lb.
The tension in cable DC is
lb.
A 7 - ft boom is held by a ball and socket at A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
