Question: A a da verilen sandalye yan er evesine ( D ) noktas ndan ekildeki gibi 5 0 0 N'luk y k uygulanmaktad r

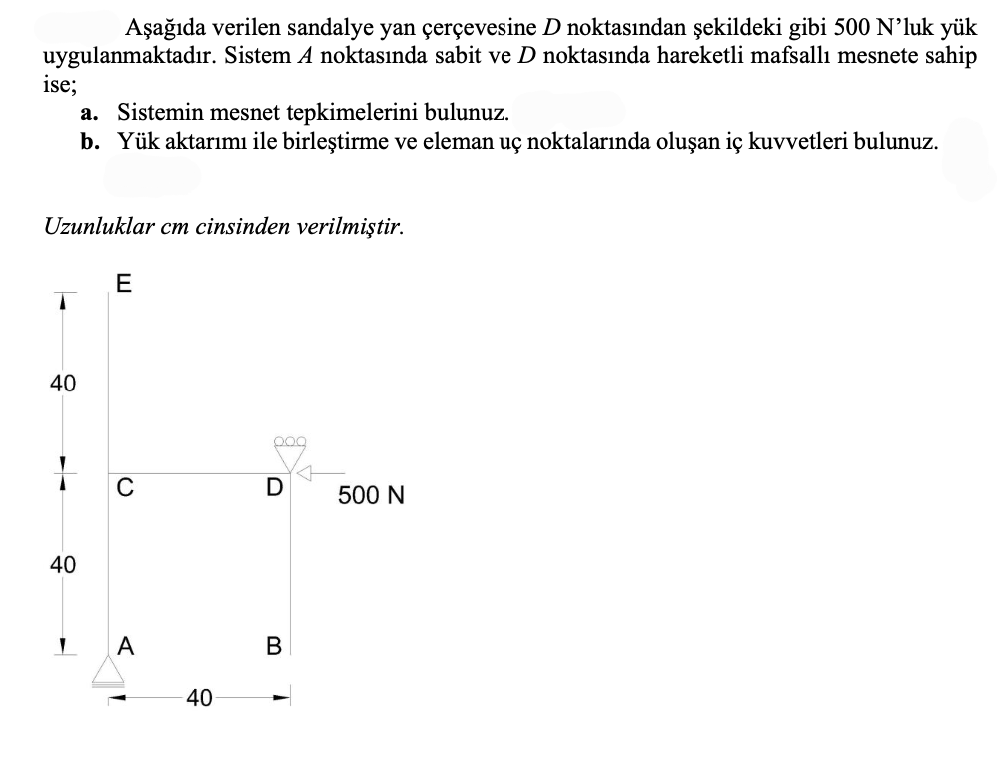

Aada verilen sandalye yan erevesine \( D \) noktasndan ekildeki gibi 500 N'luk yk uygulanmaktadr. Sistem \( A \) noktasnda sabit ve \( D \) noktasnda hareketli mafsall mesnete sahip ise;
a. Sistemin mesnet tepkimelerini bulunuz.
b. Yk aktarm ile birletirme ve eleman u noktalarnda oluan i kuvvetleri bulunuz.
Uzunluklar cm cinsinden verilmitir.
