Question: Determine the slope at A . Take E = 2 9 ( 1 0 3 ) ksi. The moment of inertia of each segment of

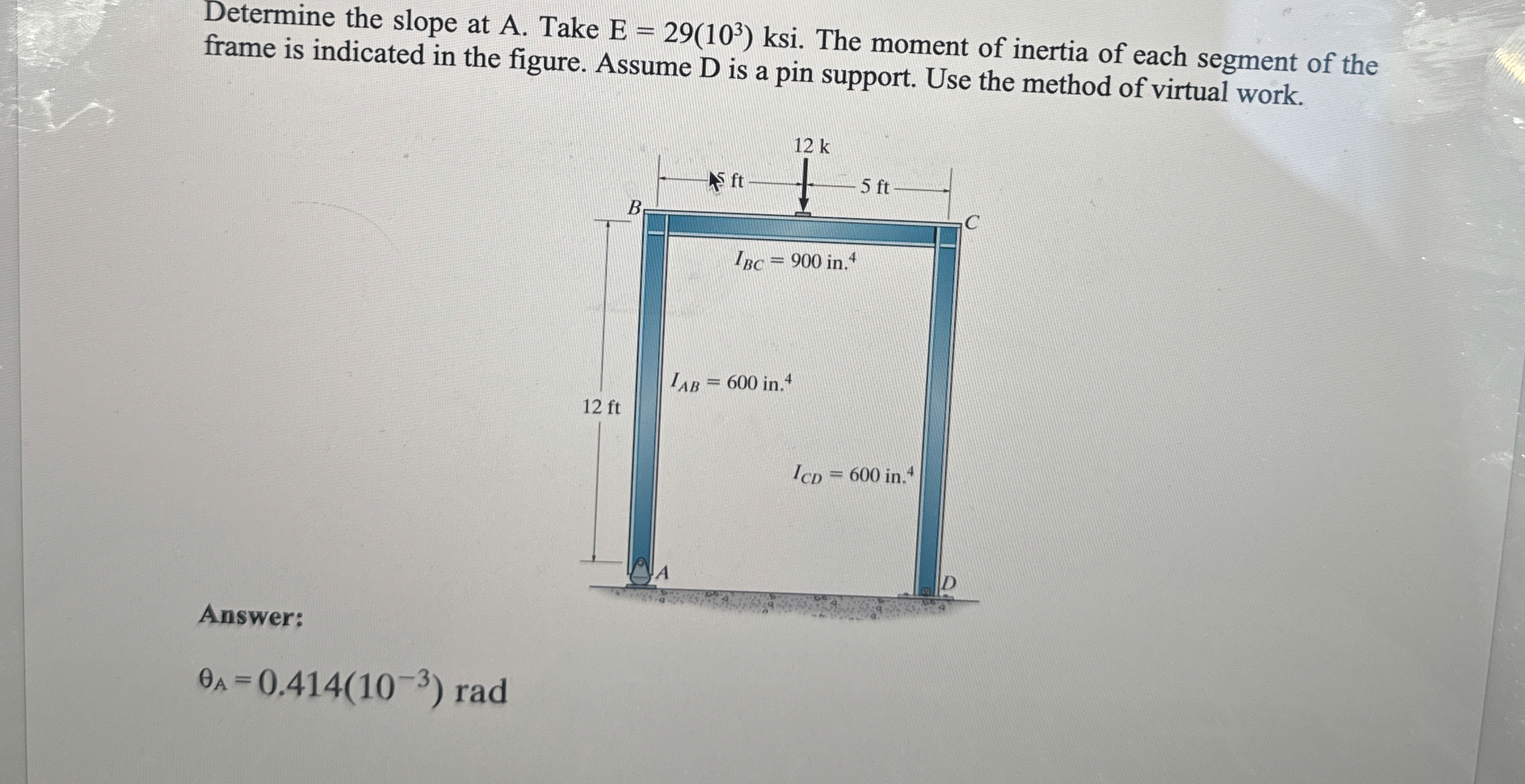

Determine the slope at A. Take E=29(103) ksi. The moment of inertia of each segment of the frame is indicated in the figure. Assume D is a pin support. Use the method of virtual work.
Answer:
A=0.414(10-3)rad
Determine the slope at A . Take E = 2 9 ( 1 0 3 )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
