Question: | A | ( B ) The cantilever shown in Figure A has a square crosssection with a side length of d = 4 m

|A|
(B)

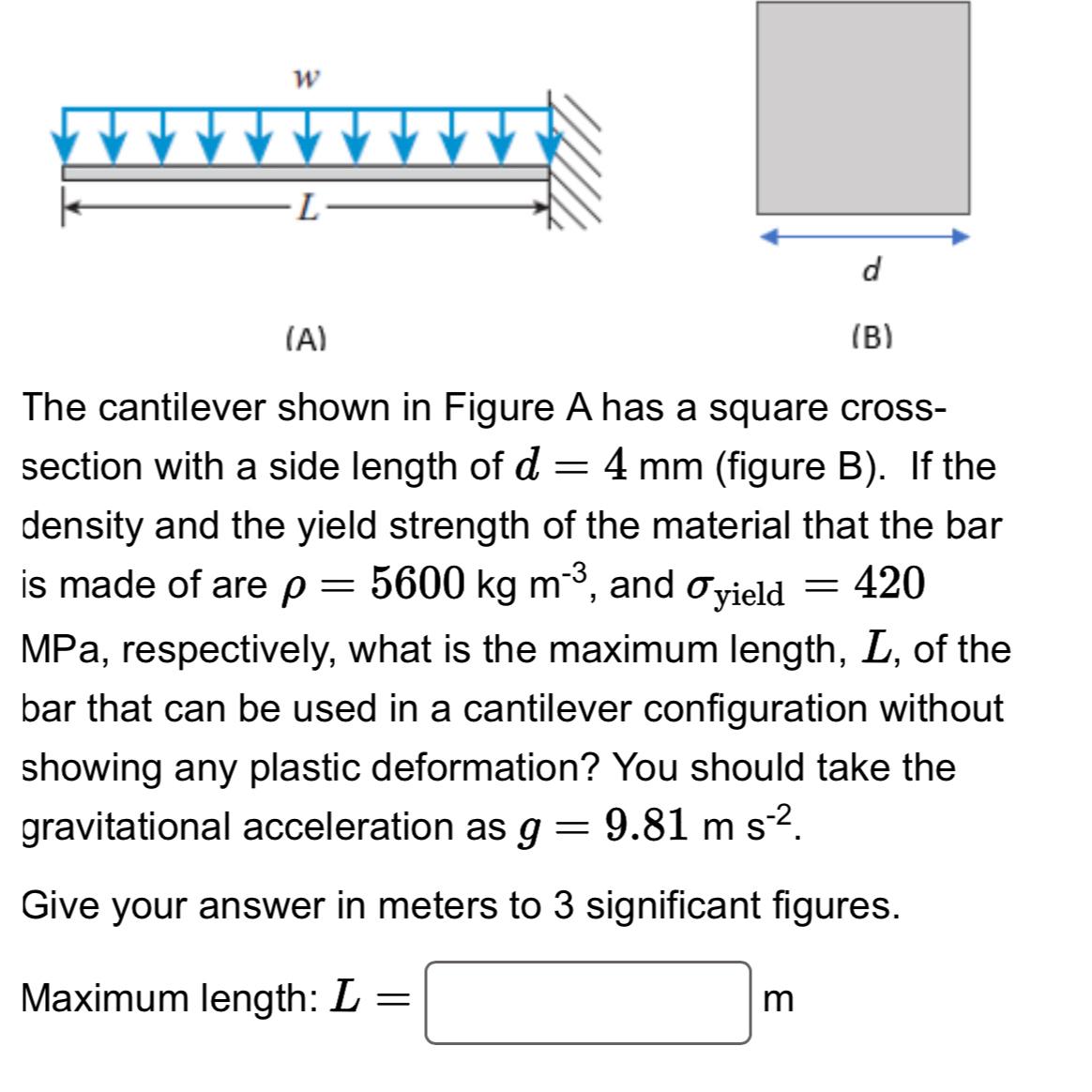

The cantilever shown in Figure A has a square crosssection with a side length of d=4mm(figure B). If the density and the yield strength of the material that the bar is made of are =5600kgm-3, and yield=420 MPa, respectively, what is the maximum length, L, of the bar that can be used in a cantilever configuration without showing any plastic deformation? You should take the gravitational acceleration as g=9.81ms-2.
Give your answer in meters to 3 significant figures.
Maximum length: L=
m
| A | ( B ) The cantilever shown in Figure A has
