Question: A beam has a L = 15 m and is carrying two points loads Load B= 11 kN and Load D= 5 kN applied

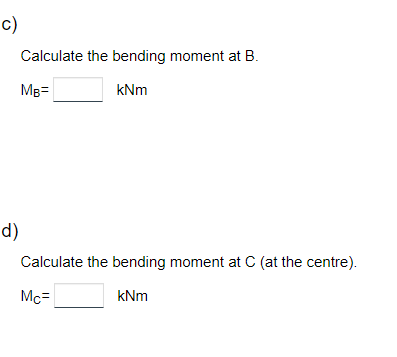

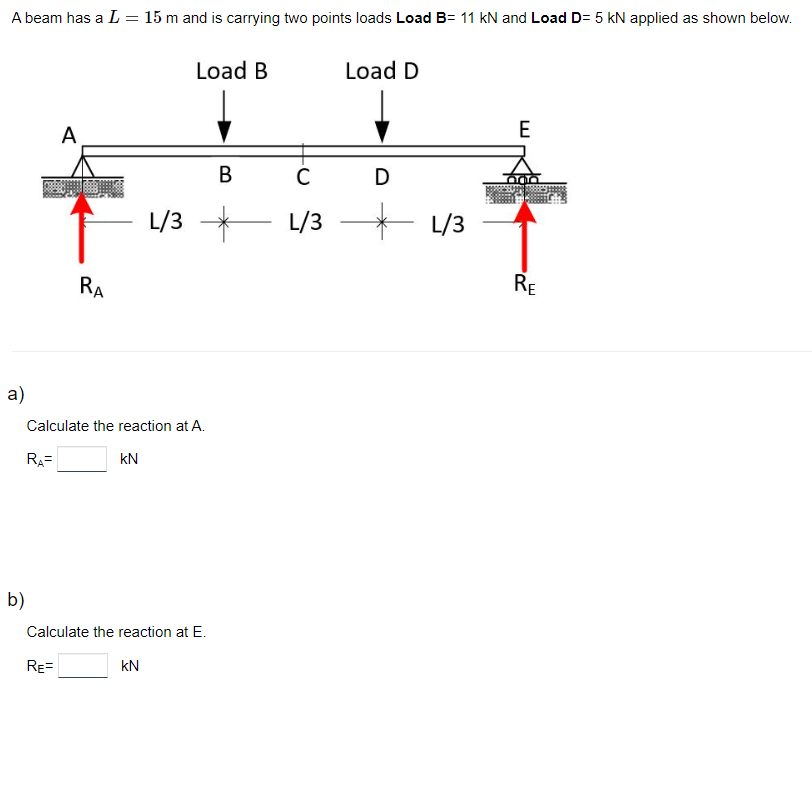

A beam has a L = 15 m and is carrying two points loads Load B= 11 kN and Load D= 5 kN applied as shown below. Load B Load D A RA L/3 a) Calculate the reaction at A. RA= KN b) Calculate the reaction at E. RE= KN E B C D L/3 * L/3 RE c) Calculate the bending moment at B. MB= kNm d) Calculate the bending moment at C (at the centre). Mc= kNm

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

Solutions Step 1 Given data Length L15m Load B11KN Load D5KN To determine the reactions at the suppo... View full answer
