Question: A Boolean function is given as f ( x , y , z ) = x y ' + y ' z ' a )

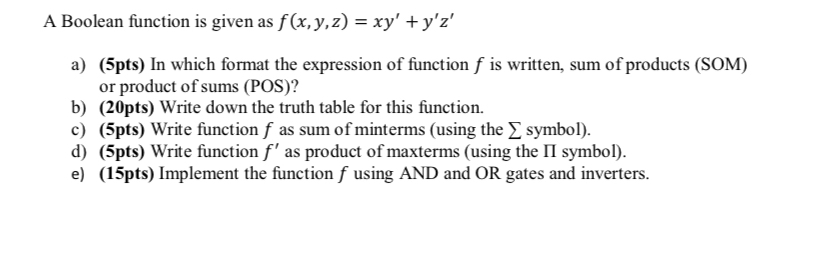

A Boolean function is given as f(x,y,z)=xy'+y'z'
a)(5pts) In which format the expression of function f is written, sum of products (SOM) or product of sums (POS)?
b)(20pts) Write down the truth table for this function.
c)(5pts) Write function f as sum of minterms (using the ?? symbol).
d)(5pts) Write function f' as product of maxterms (using the symbol).
e)(15pts) Implement the function f using AND and OR gates and inverters.
