Question: ( a ) By inspection, identify the zero - force members in the truss. ( b ) Of the zero - force members identified in

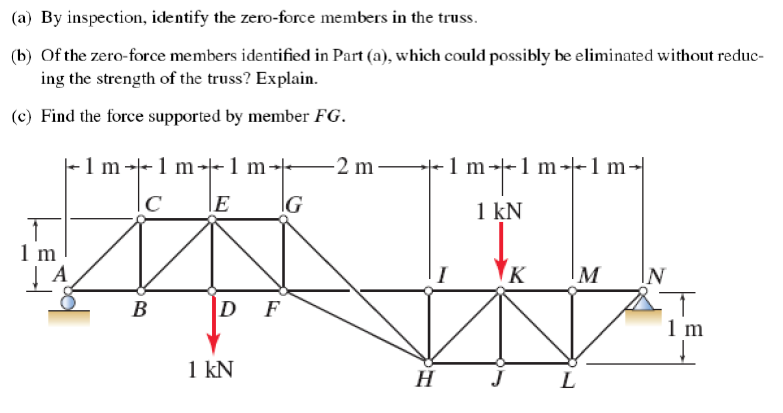

(a) By inspection, identify the zero-force members in the truss.
(b) Of the zero-force members identified in Part (a), which could possibly be eliminated without reducing the strength of the truss? Explain.
(c) Find the force supported by member \( F G \).
( a ) By inspection, identify the zero - force

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Discussion of Results Calculate the member forces of members 1 to 7 by using the strains obtained from the experimental results, i . e . strain at W = 1 0 0 0 N . Hint: Follow the steps in the theory...

Q:

Problem 1 : Truss analysis Determine the force in each truss member shown in Figure 1 . State if the members are in tension or compression and identify any zero force members. Assume all truss joints...

Q:

QUESTION 2 The loaded truss system shown in Figure Q 2 is pin - supported at joint A and supported on a roller at joint M . a ) Determine the support reactions A and M . b ) Identify the zero force...

Q:

Problem 2 : Method of Joints Problem 2 : Method of Joints Consider the truss below, assuming that all member joints are pined: a . Identify all zero force members by inspection. b . Using the Method...

Q:

A generative pre - trained transformer ( GPT ) was prompted to identify the zero force members in the truss shown. The prompt read: Are there zero force members in the truss? The GPT s raw output is...

Q:

Assignment Problem 1 ( 1 6 pts ) For each of the trusses in Figure 1 , solve for the reactions and internal forces. Present your final solution 1 ) on a drawing of the truss with the values labeled...

Q:

Determine the force in each truss member shown in figure 1 . State if the members are in tension or compression and identify any zero force members. Assume all truss joints are pin - connected....

Q:

Show me the steps to solve a ) Identify all the zero force members in the truss shown and draw a FBD of the truss with these members removed. b ) Using method of joints determine the internal force...

Q:

Problem 2 : Method of Joints Consider the truss below, assuming that all member joints are pined: a . Identify all zero force members by inspection. b . Using the Method of Joints and your answer...

Q:

Q . 2 A truss shown in Figure Q . 2 has a pinned support at A and a roller support at C , and it is subjected to point loads of 1 0 k N , 2 0 k N , 1 0 k N and 3 0 kN at C , F , G and H respectively....
