Question: A cast - iron bracket subjected to bending has a cross - section of I - shape with unequal flanges as shown in the figure.

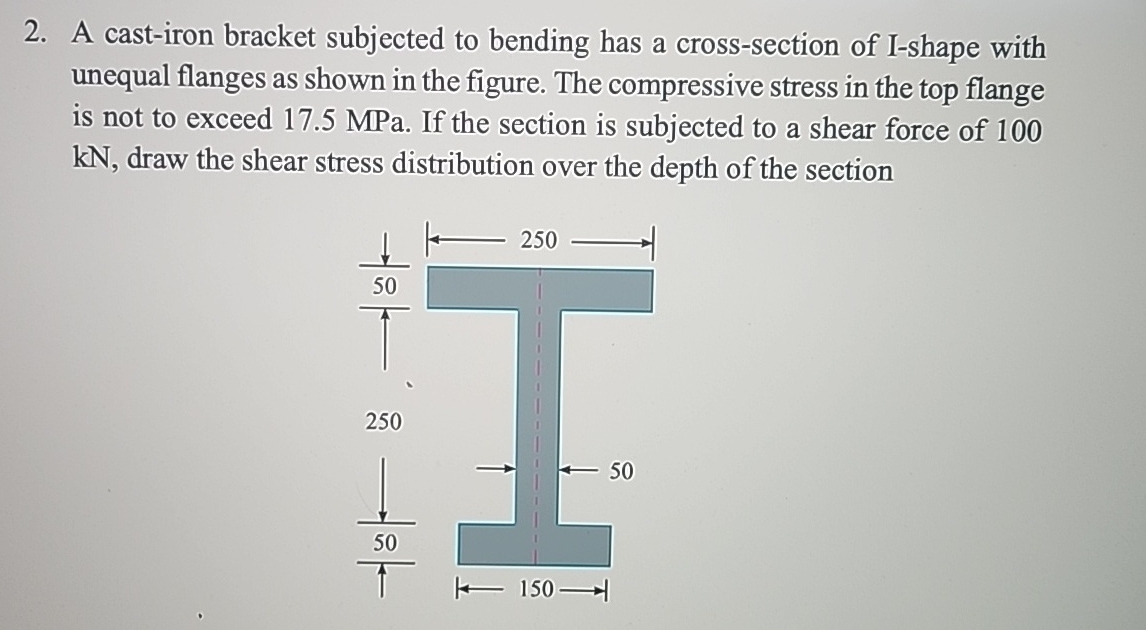

A cast-iron bracket subjected to bending has a cross-section of I-shape with unequal flanges as shown in the figure. The compressive stress in the top flange is not to exceed 17.5 MPa . If the section is subjected to a shear force of 100 kN , draw the shear stress distribution over the depth of the section
A cast - iron bracket subjected to bending has a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
