Question: Two structural members B and C are bolted to bracket A . Knowing that both members are in tension and that P = 8 kips

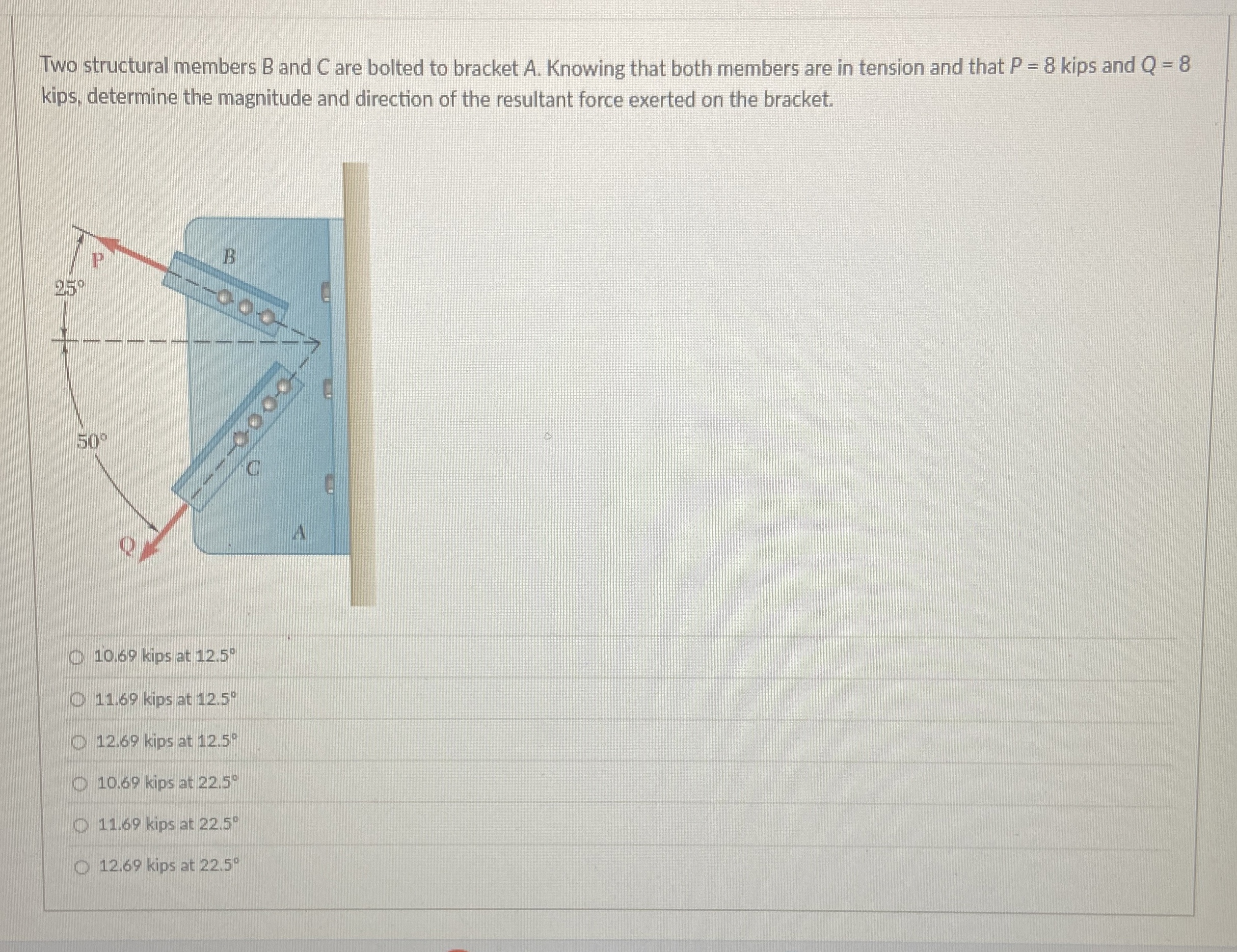

Two structural members B and C are bolted to bracket A. Knowing that both members are in tension and that P=8 kips and Q=8 kips, determine the magnitude and direction of the resultant force exerted on the bracket.
10.69 kips at 12.5
11.69 kips at 12.5
12.69 kips at 12.5
10.69 kips at 22.5
11.69 kips at 22.5
12.69 kips at 22.5
Two structural members B and C are bolted to
