Question: A central beam ( B D ) is joined at hinges to two cantilever beams ( A B ) and

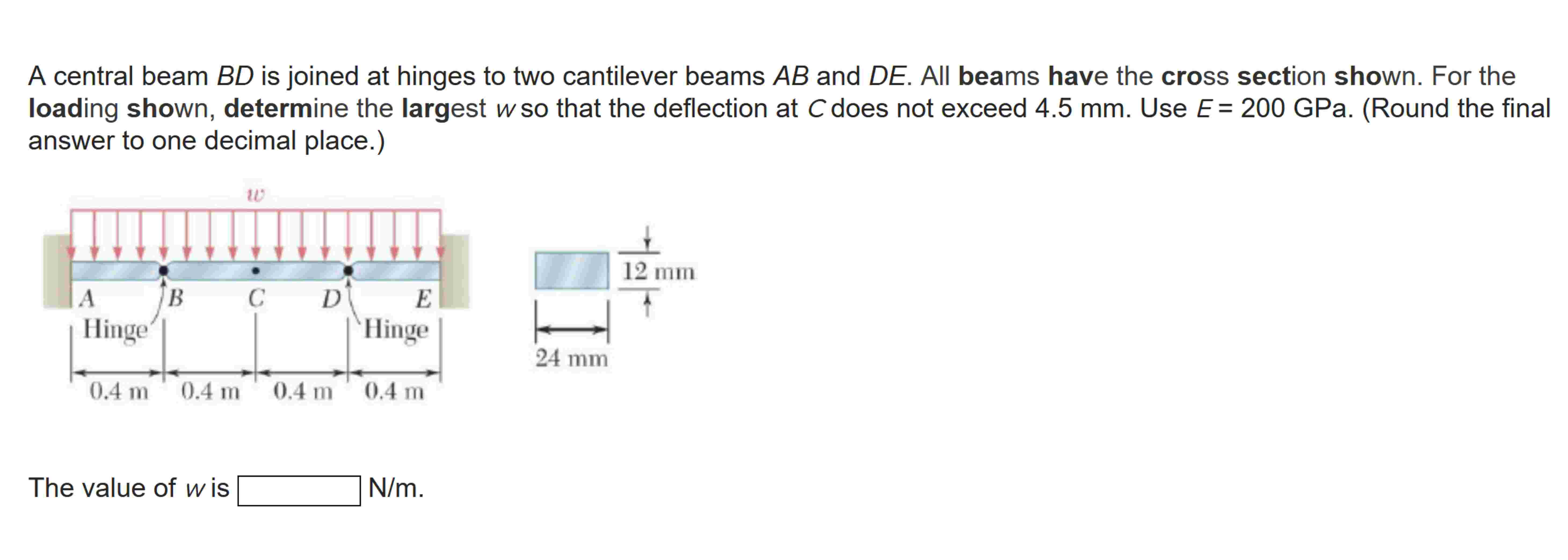

A central beam \( B D \) is joined at hinges to two cantilever beams \( A B \) and \( D E \). All beams have the cross section shown. For the loading shown, determine the largest \( w \) so that the deflection at \( C \) does not exceed 4.5 mm . Use \( E=200\) GPa. (Round the final answer to one decimal place.)
