Question: a ) Classify the truss ( simple , compound, complex ) and analyze for stability and determinacy. b ) For truss with member properties, E

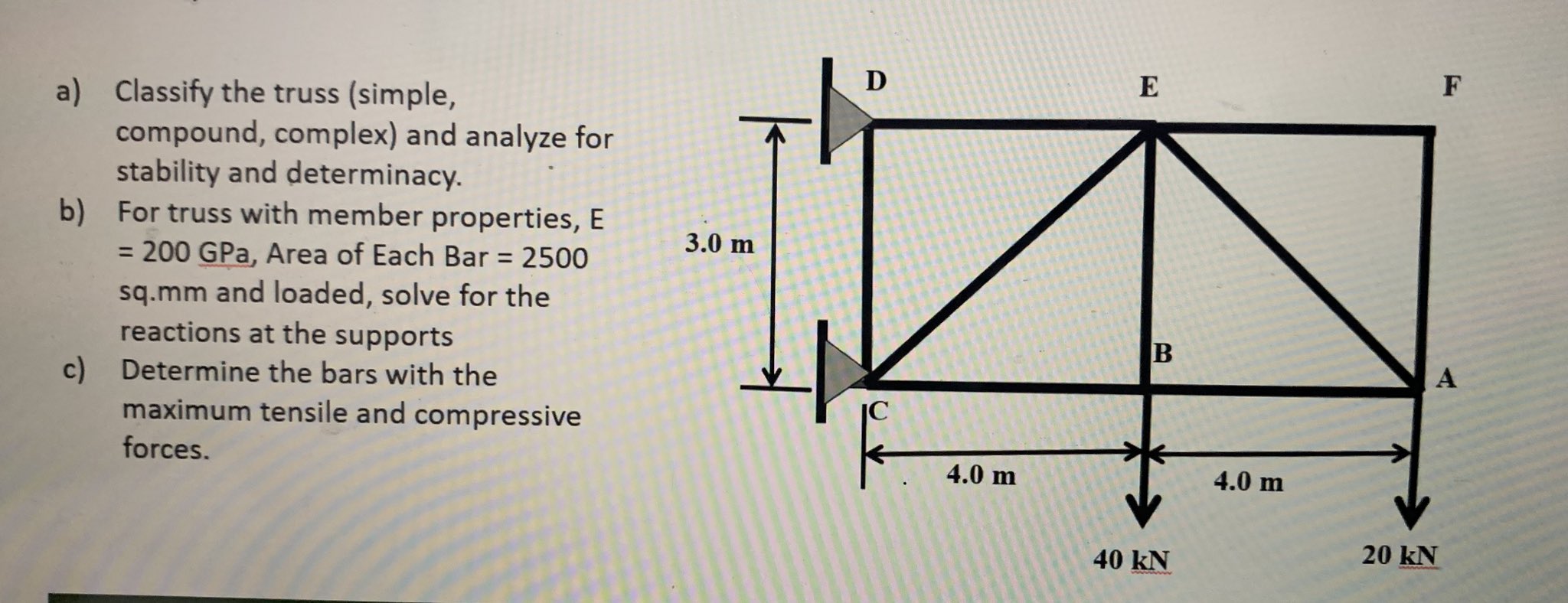

a) Classify the truss (simple, compound, complex) and analyze for stability and determinacy.
b) For truss with member properties, E=200GPa, Area of Each Bar =2500
sq.mm and loaded, solve for the reactions at the supports
c) Determine the bars with the maximum tensile and compressive forces.
a ) Classify the truss ( simple , compound,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
