Question: A deflection angle traverse is shown to the left. If the bearing of A - Q is S 6 6 3 ' 5 1

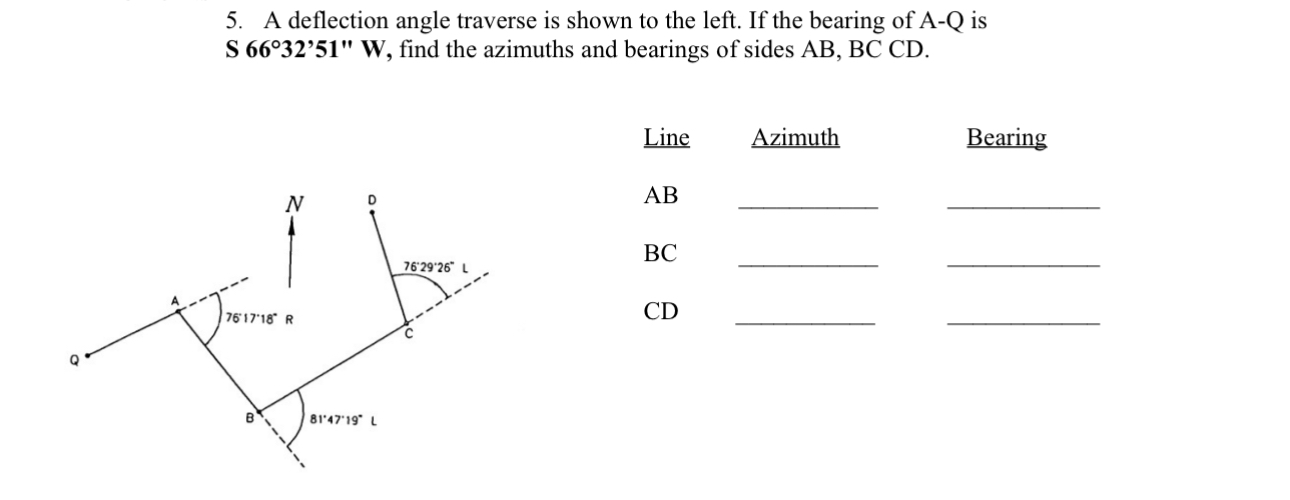

A deflection angle traverse is shown to the left. If the bearing of A-Q is S 663'51" W, find the azimuths and bearings of sides AB, BC CD.
Line
Azimuth
Bearing
AB
BC
CD
A deflection angle traverse is shown to the left.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
