Question: ( a ) Determining switching activity P 0 . 1 at X , and F positions in the given circuit. circuit A Will the power

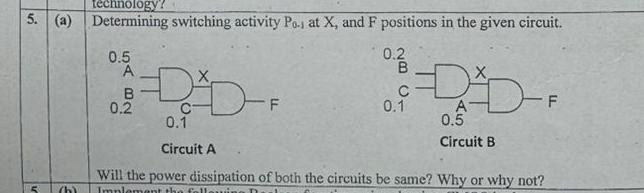

(a) Determining switching activity P0.1 at X , and F positions in the given circuit.
circuit A
Will the power dissipation of both the circuits be same? Why or why not?
( a ) Determining switching activity P 0 . 1 at X

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
