Question: A differential leveling circuit started at BM Hydrant ( elev . 3 6 7 . 3 0 ft ) and ended at B M M

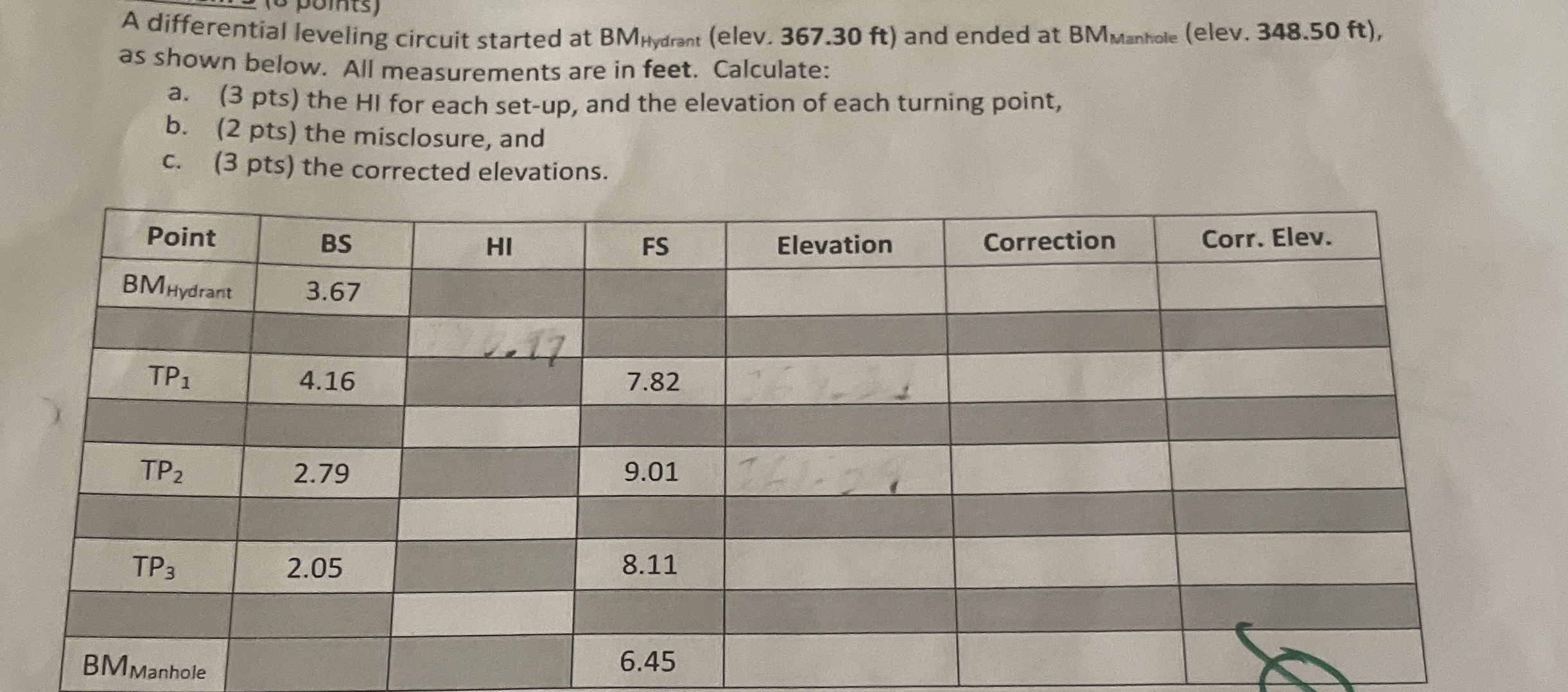

A differential leveling circuit started at BM Hydrant (elev.367.30 ft ) and ended at BMMantole(elev.348.50ft as shown below. All measurements are in feet. Calculate:
a.(3pts) the HI for each set-up, and the elevation of each turning point,
b.(2 pts) the misclosure, and
c.(3 pts) the corrected elevations.
\table[[Point,BS,HI,FS,Elevation,Correction,Corr. Elev.],[,3.67,,,,,],[,,,,,,],[TP ?1,4.16,,7.82,1,,],[,,,,,,],[TP 2,2.79,,9.01,-1,,],[,,,,,,],[TP3,2.05,,8.11,,,],[,,,,,,],[Manhole,,,6.45,,,]]
A differential leveling circuit started at BM
