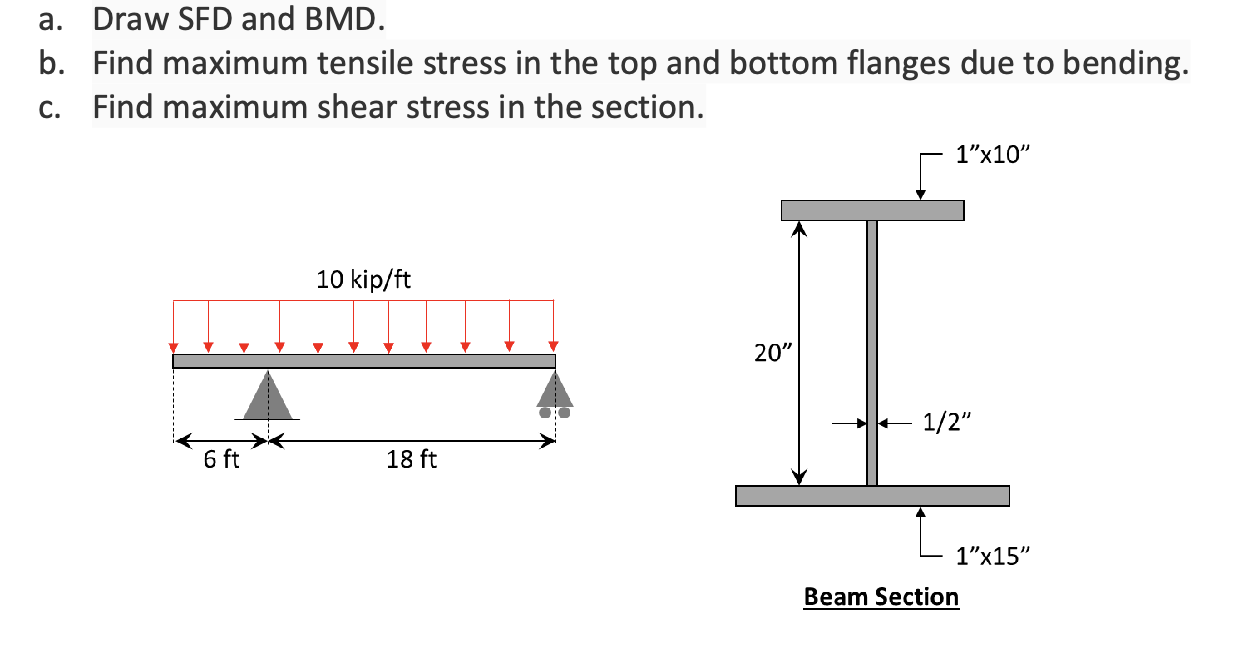

Question: a . Draw SFD and BMD . b . Find maximum tensile stress in the top and bottom flanges due to bending. c . Find

a. Draw SFD and BMD.
b. Find maximum tensile stress in the top and bottom flanges due to bending.
c. Find maximum shear stress in the section.
a . Draw SFD and BMD . b . Find maximum tensile

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
