Question: A. Draw the AON network diagram for this project. (10 marks) B. What is the shortest duration for this project? (2 marks) List the tasks

A. Draw the AON network diagram for this project. (10 marks)

B. What is the shortest duration for this project? (2 marks) List the tasks on the critical path(s)? (8 marks)

C. Calculate the Early Start, Early Finish, Late Start and Late Finish times for each task, and draw them on the AON diagram. (10 marks)

D. Calculate the Free Slack and Total Slack for each task. (10 marks)

A. Draw the AON network diagram for this project.

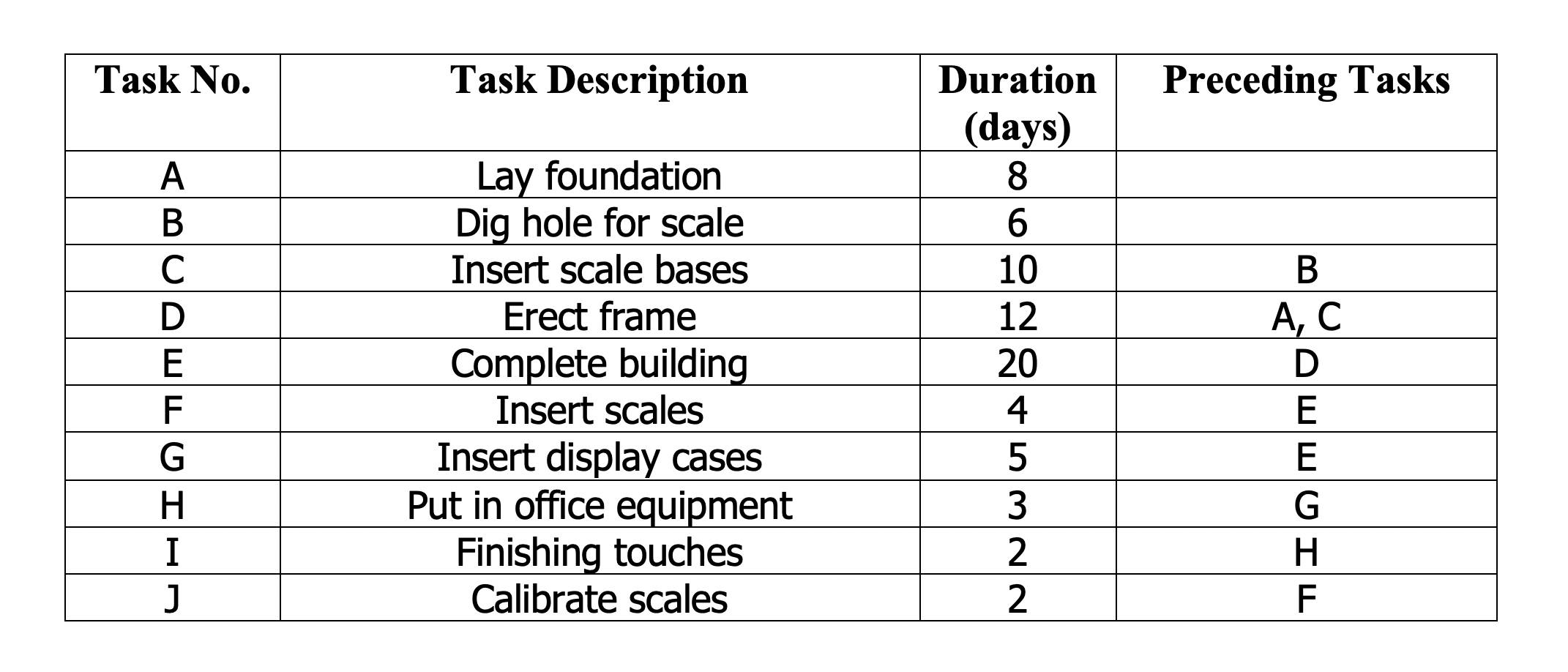

Task No. Task Description Preceding Tasks A Duration (days) 8 6 10 B A, C 12 20 Lay foundation Dig hole for scale Insert scale bases Erect frame Complete building Insert scales Insert display cases Put in office equipment Finishing touches Calibrate scales 4 E E 5 3 2 2 F
