Question: (a) Draw the network diagram and tabulate ES, EF, LS, LF, TF and FF. Determine the project durationand indicate the critical path. (b) What is

(a) Draw the network diagram and tabulate ES, EF, LS, LF, TF and FF. Determine the project durationand indicate the critical path.

(b) What is the shortest time to complete the project? If you are the project manager which activitieswill you focus on to speed up the project?

(a) Draw the network diagram and tabulate ES, EF,

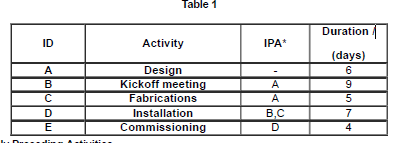

Table 1 ID Activity IPA Design Kickoff meeting Fabrications Installation Commissioning Duration (days) 6 6 9 5 7 4 A A B,C D to|g lu |-|
