Question: A feedback control system has a characteristic equation s 3 + ( 1 + K ) s 2 + 1 0 s + ( 5

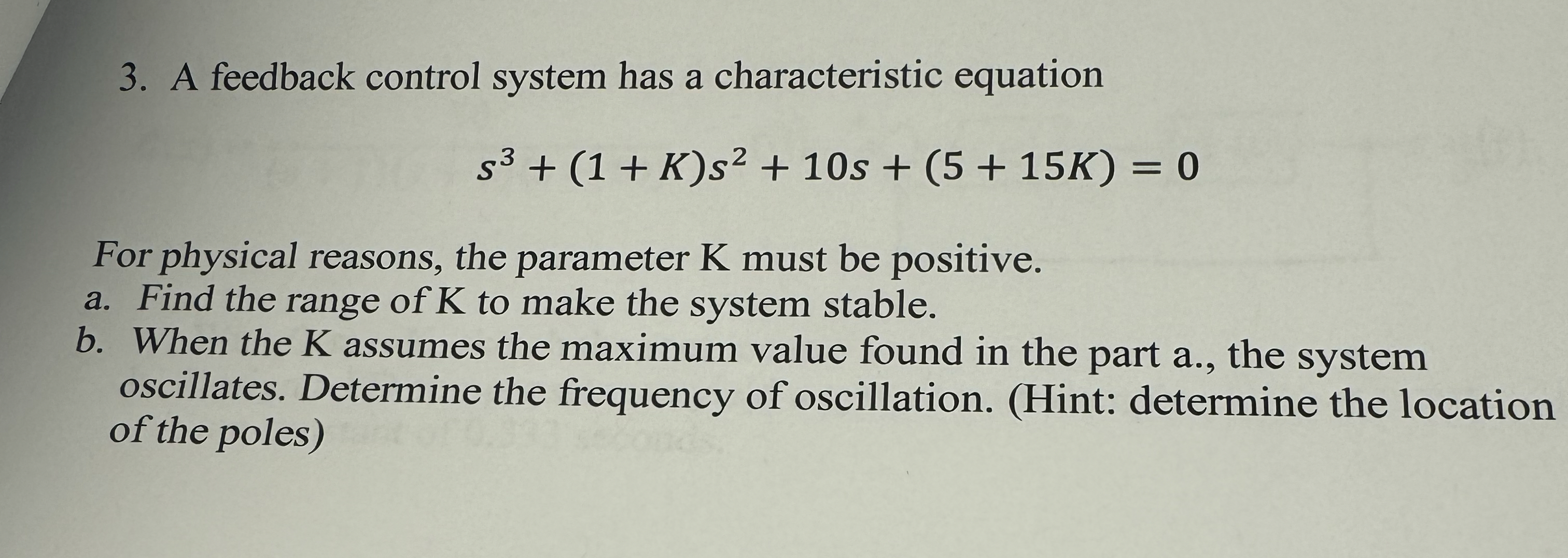

A feedback control system has a characteristic equation
s3+(1+K)s2+10s+(5+15K)=0
For physical reasons, the parameter K must be positive.
a. Find the range of K to make the system stable.
b. When the K assumes the maximum value found in the part a., the system oscillates. Determine the frequency of oscillation. (Hint: determine the location of the poles)
A feedback control system has a characteristic

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
