Question: ( a ) For problem 3 . 7 2 of the textbook, principal stress values are mentioned below which are built upon the results of

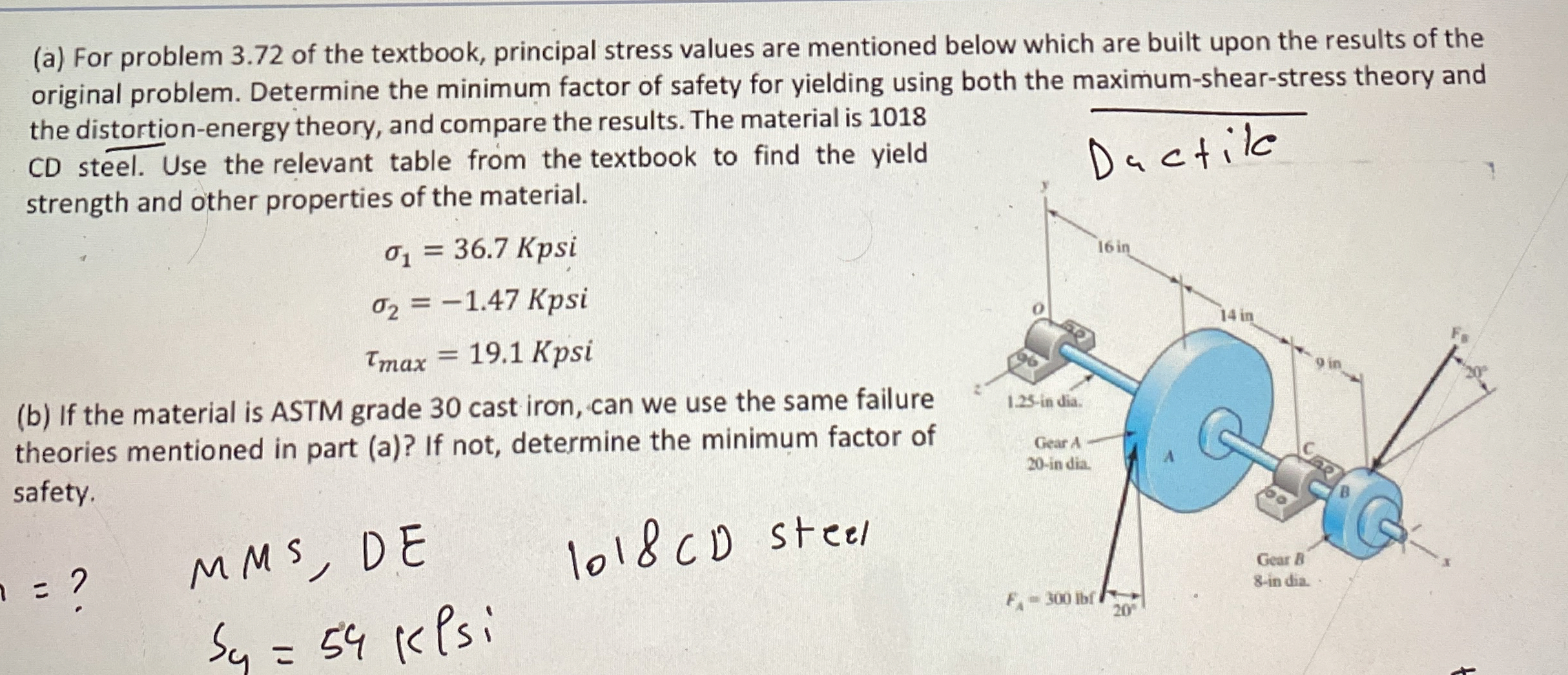

(a) For problem 3.72 of the textbook, principal stress values are mentioned below which are built upon the results of the original problem. Determine the minimum factor of safety for yielding using both the maximum-shear-stress theory and the distortion-energy theory, and compare the results. The material is 1018 CD steel. Use the relevant table from the textbook to find the yield strength and other properties of the material.
1=36.7K
2=-1.47K
max=19.1K
(b) If the material is ASTM grade 30 cast iron, can we use the same failure theories mentioned in part (a)? If not, determine the minimum factor of safety.
=?MMS
Part a Sy=54 kpsi
I got the answers
n von mises =1.44
n MMS =1.41
For part b
Sut=31 kpsi , Suc =109 kpsi
I got n =0.835
Please check these answers if true or not and if not tell me the true
( a ) For problem 3 . 7 2 of the textbook,
