Question: A force P = 2 8 N is applied to a rod that is supported by rollers A ( which is enclosed between two walls!

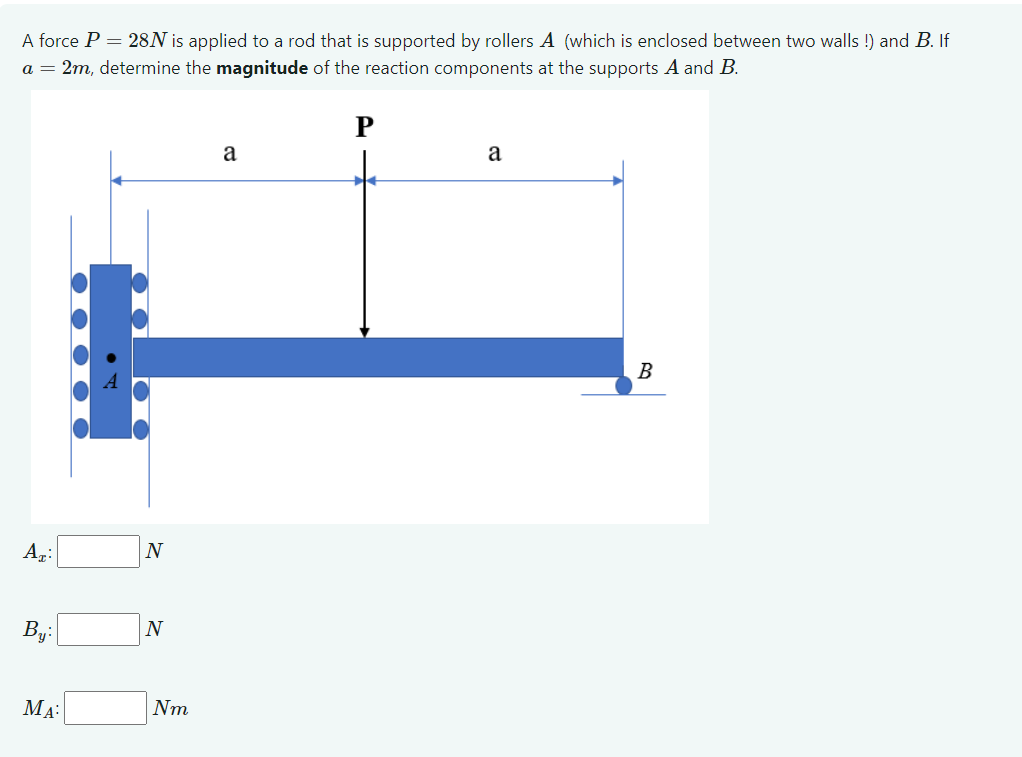

A force P=28N is applied to a rod that is supported by rollers A(which is enclosed between two walls!) and B. If
a=2m, determine the magnitude of the reaction components at the supports A and B.
A force P = 2 8 N is applied to a rod that is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
