Question: A full adder (FA) is a logic function that performs an addition operation on three one-bit binary numbers. The full adder produces a sum of

A full adder (FA) is a logic function that performs an

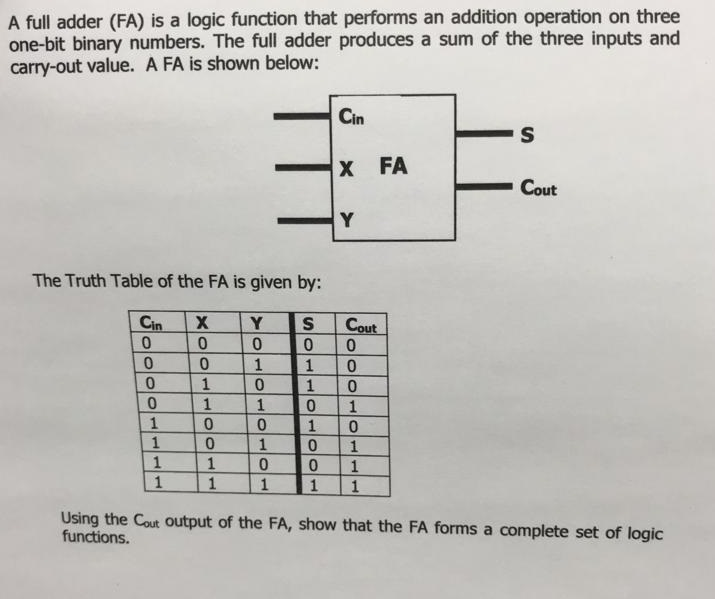

A full adder (FA) is a logic function that performs an addition operation on three one-bit binary numbers. The full adder produces a sum of the three inputs and carry-out value. A FA is shown below: Cin Cout The Truth Table of the FA is given by: 0 0 1 0 1 0 0 1 0 0 1 Using the Cout output of the FA, show that the FA forms a complete set of logic functions

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
